Removing Sealing Ring For Right Flanged Shaft

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove flanged shaft with special tool Striker VW 771/1 → Removing flanged shaft  .
    Fig 1: Removing Flanged Shaft
    G09934713Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove sealing ring with special tool Striker VW 771/1  and Extraction Tool VW 771/37  attachment.

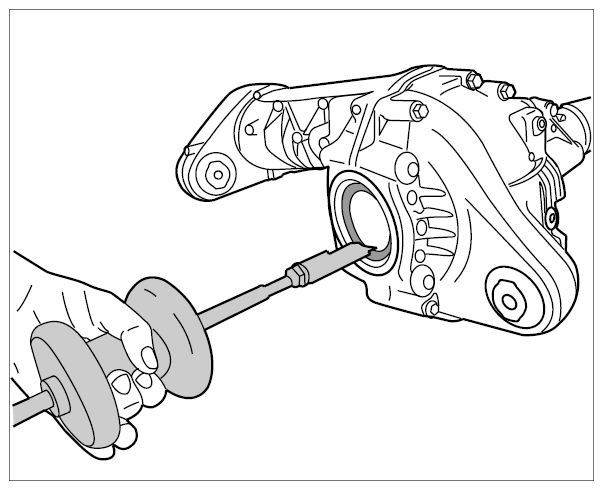

    Fig 2: Removing Sealing Ring
    G09934730Courtesy of PORSCHE CARS NORTH AMERICA, INC.
