Installing Sealing Ring For Halfshaft Flange (Left Side)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Half-fill the space between the sealing and dust lips -arrow- with grease.

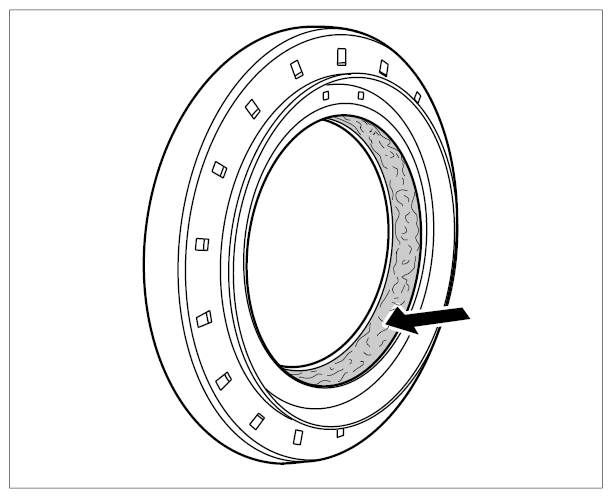

Fig 1: Locating Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tap in new sealing ring using special tool Thrust Piece T10256 until the special tool is touching the housing. → Installing sealing ring (right side)

Fig 2: Installing Sealing Ring (Right Side)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Half-fill the space between the sealing and dust lips -arrow- with grease.

Fig 1: Locating Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tap in new sealing ring using special tool Thrust Piece T10434 until the special tool is touching the housing. → Installing sealing ring (right side)

Fig 2: Installing Sealing Ring (Right Side)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
