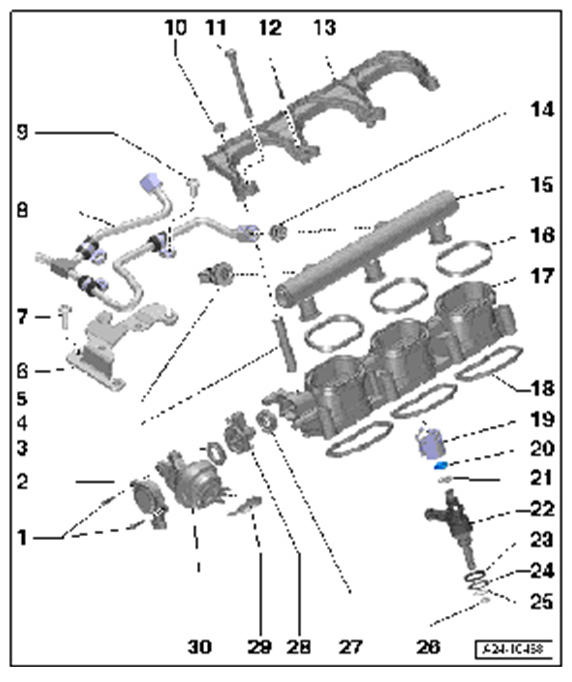

Assembly Overview - Lower Part Of Intake Manifold
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Screw → Tightening Torque: 2.5 Nm (2 ft. lb.)
- Potentiometer for intake manifold flap
- Sealing ring Replace If Damaged
- Sleeve
- Fuel pressure sensor → Tightening Torque: 22 Nm (16 ft. lb.)
- Holder
- Screw → Tightening Torque: 9 Nm (6.5 ft. lb.)
- High-pressure lines → Tightening Torque: 27 Nm (20 ft. lb.)
- Screw → Tightening Torque: 9 Nm
- Nut → Tightening Torque: 9 Nm (6.5 ft. lb.)
- Screw → Tightening Torque: 9 Nm (6.5 ft. lb.)
- Screw → Tightening Torque: 2.5 Nm (2 ft. lb.)
- Retaining bar for fuel distributor
- Union nut → Tightening Torque: 40 Nm (30 ft. lb.)
- Fuel distributor
- Seal Replace
- Lower part of intake manifold
- Seal Replace
- Support ring
- O-ring/Replace, Coat With Engine Oil Before Installation
- Spacer ring Replace If Damaged
- Fuel injector
- Top sealing washer
- Bottom sealing washer
- Circlip
- Combustion chamber sealing ring Replace
- Sealing ring Replace If Damaged
- Actuating lever for vacuum actuator
- Vacuum hose for intake manifold flap valve
- Vacuum actuator for intake manifold flap control
