Removing And Installing Pressure Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

The intake pipe pressure sensor is at a central position on the intake-air distributor and is facing the plenum panel. -4- .

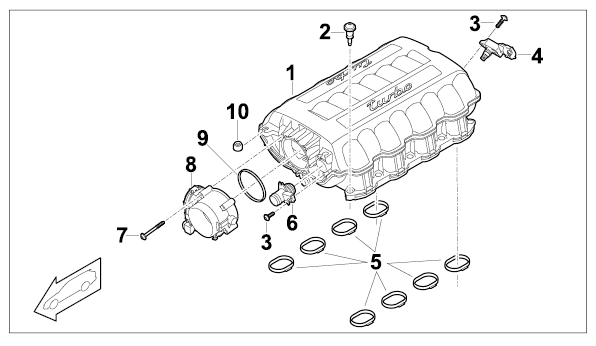

Fig 1: Identifying Intake Air Module And Related Components On Turbo Engine

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Intake module
Decoupling module (fastening part); observe specified tightening sequence
Screw, 5 x 16 → Tightening Torque: 4 Nm (3 ft. lb.)
Pressure sensor
Intake module seal; Check That Seal Is Aligned And Fitted Correctly!
Heat socket
Screw, 6 x 50
Electronic accelerator
Seal
Ball socket

Remove pressure sensor.
1. 1.1. Pull off cable plug.
2. 1.2. Remove screw.
3. 1.3. Remove pressure sensor by levering and turning it slightly.
If the sealing ring is damaged, the sensor must be replaced.
Fit the pressure sensor into the intake-air distributor by turning it slightly.
1. 3.1. Position and fit the screw.
2. 3.2. Connect cable plug.
