Replacing DME Control Unit With Anti-Theft Protection

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

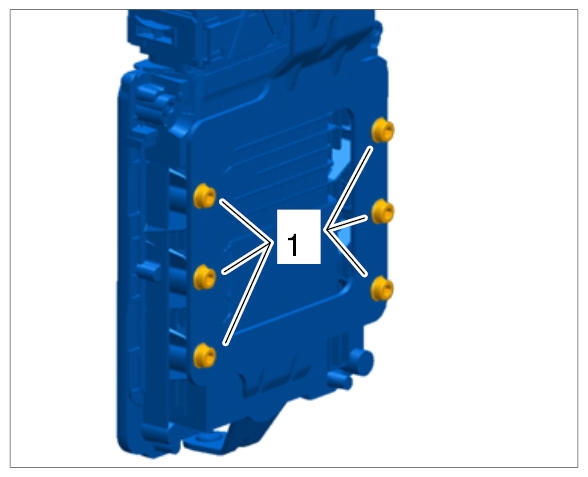

Unscrew four fastening screws -1- on the bracket.

Fig 1: Replacing DME Control Unit (Shown As Example)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

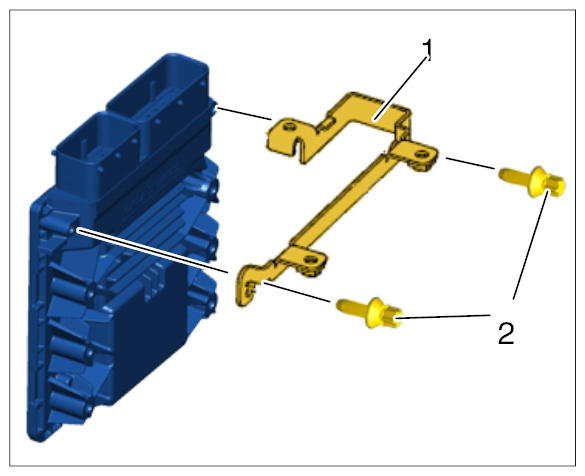

Screw the new anti-theft protection holder -1- to the new DME control unit with two shear bolts -2- until the bolt head shears off.
Do NOT Re-Use the old anti-theft protection holder as the procedure for removing the two shear bolts would be too complicated.

Fig 2: Screwing Anti-Theft Protection Holder To DME Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

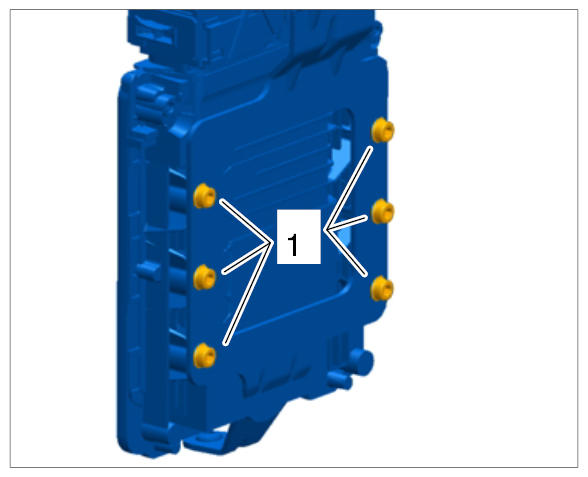

Screw in four fastening screws -1- on the bracket. → Tightening Torque: 9 Nm (6.5 ft. lb.)

Fig 3: Replacing DME Control Unit (Shown As Example)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
