Removing DME Control Unit: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

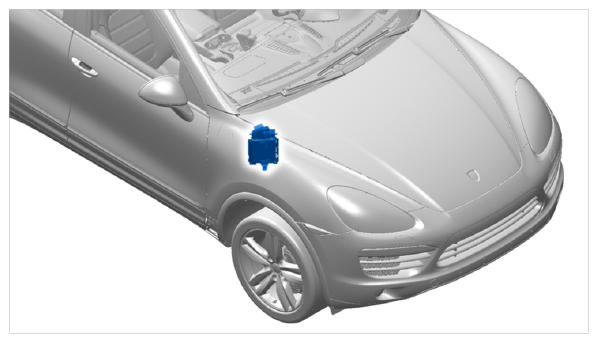

Fig 1: Identifying DME Control Unit Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Always comply with the regulations for handling ESD-sensitive components!

Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche .
The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed .
Never touch the electric pins and plug contacts .

Switch off ignition and remove remote control (hand-held transmitter) and control panel.
Unscrew both fastening screws -1- on the control unit bracket and remove water drip pan -2- .

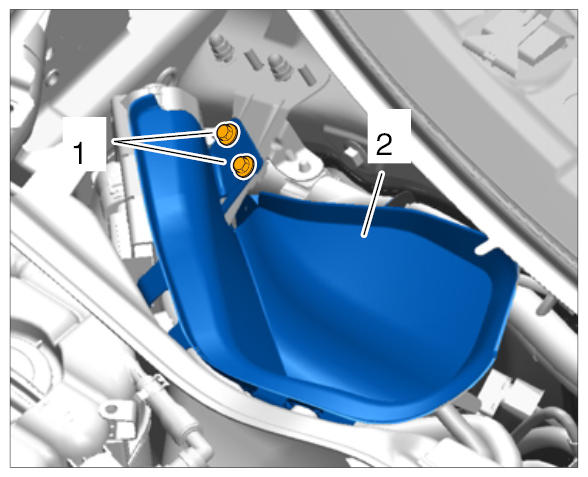

Fig 2: Identifying Water Drip Pan
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
NOTE:
Voltage peaks
- Risk of damage to electrical load or to the control unit
Information

Left-hand drive vehicles are fitted with a protection cap over the connector. This must be folded upwards before releasing and disconnecting the connector.
Release electric plug connection -1- (-a- ) and pull it off -B- .

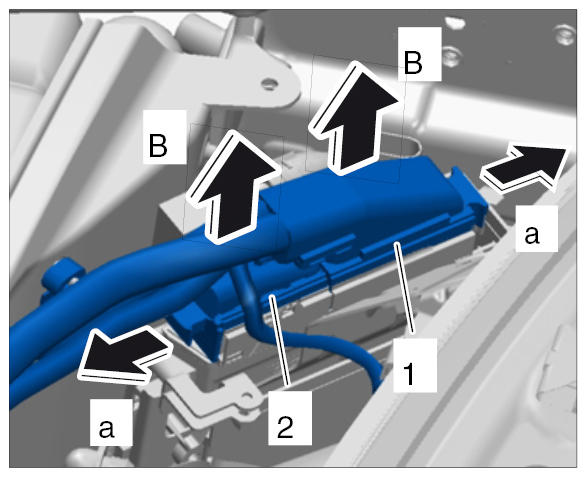

Fig 3: Releasing Plug Connections From DME Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release electric plug connection -2- (-a- ) and pull it off -B- .
Remove DME control unit with bracket by pulling it upwards.
