Installing DME Control Unit: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

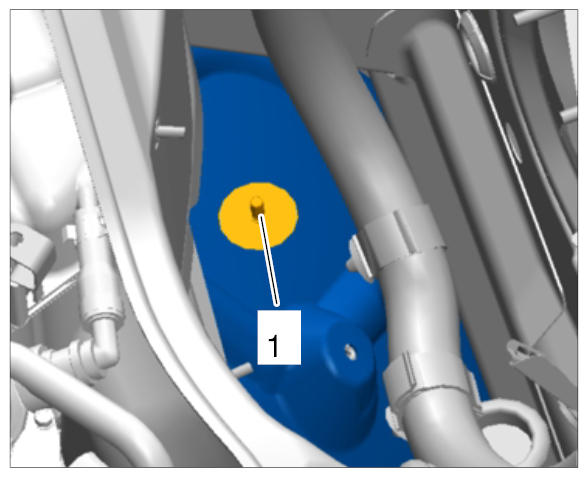

Fit bracket for DME control unit on the guide pins -1- .

Fig 1: Installing DME Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

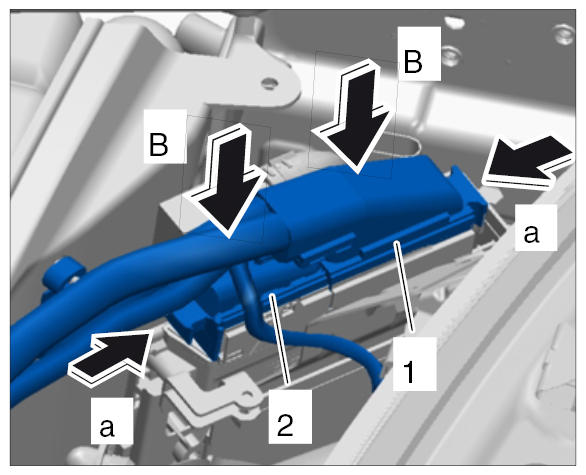

Plug in electric plug connection -2- (-B- ) and lock it -a- .

Fig 2: Plugging In Plug Connection On DME Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in electric plug connection -1- (-B- ) and lock it -a- .
Information

For left-hand drive vehicles, check that the protection cap is placed back over the connector correctly and prevents water from leaking in.

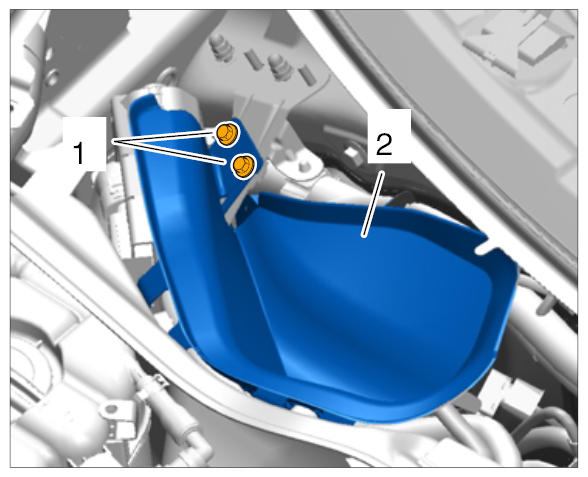

Fit water drip pan -2- and screw in two fastening screws -1- on bracket for DME control unit. → Tightening Torque: 8 Nm (6 ft. lb.)

Fig 3: Installing Water Drip Pan
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
