Installing DME Control Unit With Anti-Theft Protection

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Plug in the two electric plug connections one after the other and lock them.
Position anti-theft protection bar -2- and screw in three shear bolts -1- until the bolt head shears off.

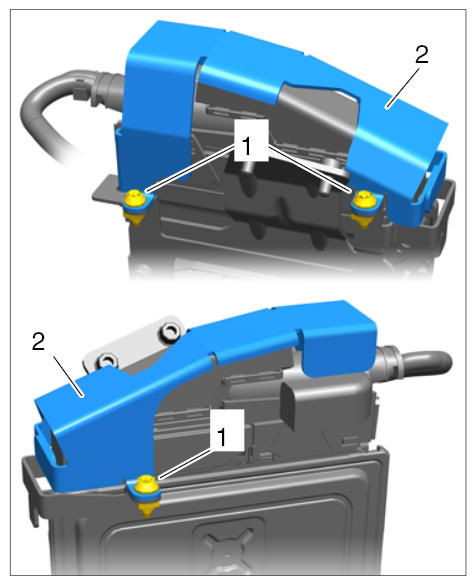

Fig 1: Front And Rear View Of DME Control Unit With Anti-Theft Protection Bar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit bracket for DME control unit on the guide pins -1- .

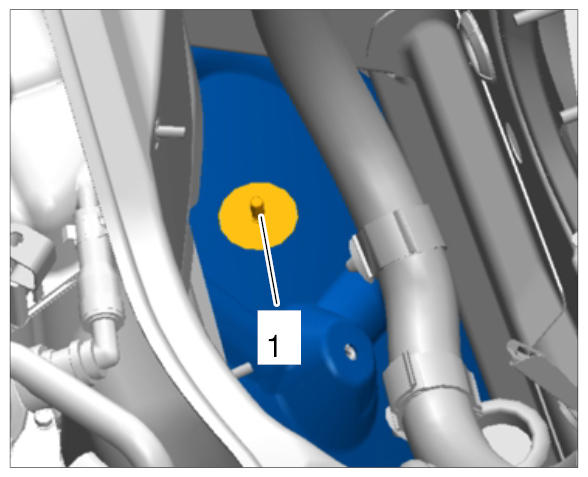

Fig 2: Installing DME Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in DME cables at two places -1- .

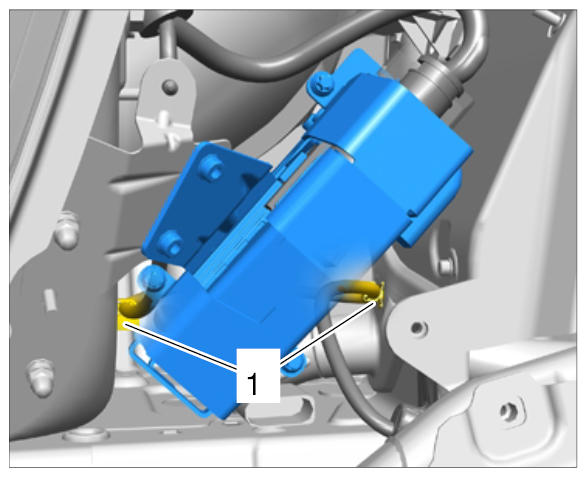

Fig 3: Clipping In DME Control Unit Cables
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

For left-hand drive vehicles, check that the protection cap is placed back over the connector correctly and prevents water from leaking in.
Fit water drip pan -2- and screw in using the two fastening screws -1- for the DME control unit bracket. → Tightening Torque: 8 Nm (6 ft. lb.)

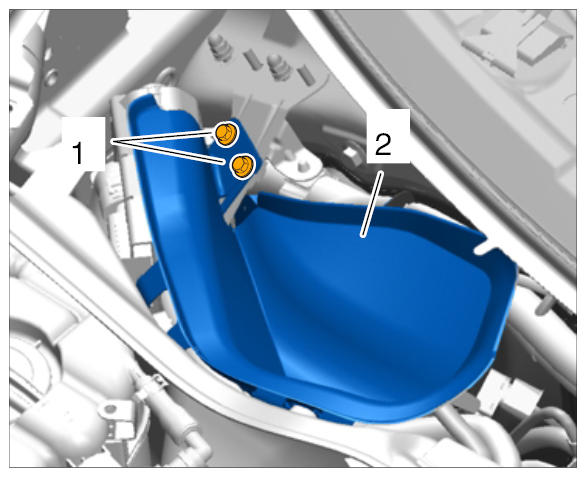

Fig 4: Installing Water Drip Pan
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Move the bonnet out of service position.
