Removing Oxygen Sensor Upstream Of Catalytic Converter

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Incorrect handling of oxygen sensors

Damage to oxygen sensors
Different exhaust emission behavior

→ Do not remove the plastic cap on the thread until just prior to fitting.

→ Protect oxygen sensors from impact of any kind.

→ Do not kink or twist the cables when screwing in the sensors.

→ Do not re-use dirty or damaged components.

Information

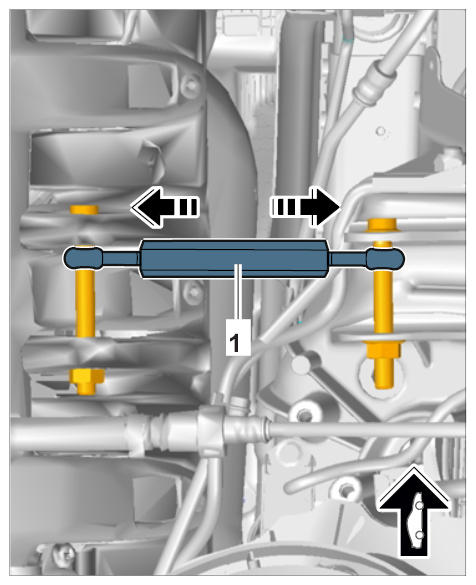

For better access in the engine compartment, use support 9866 .

Fit support -1- instead of torque support .

The engine can be moved by turning the hexagon (a/f 17) to the left or right -arrows- .

Fig 1: Identifying Support Special Tool (9866)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

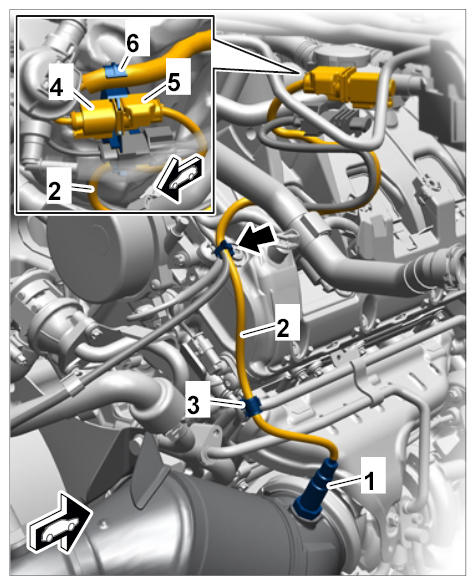

Remove oxygen sensor -1- at the left upstream of catalytic converter.
1. 1.1. Loosen tie-wrap -arrows- and expose electric line -2- .
2. 1.2. Release and disconnect electric connector -3- .
3. 1.3. Loosen connector housing -4- from the holder -5- .
4. 1.4. Disconnect electric line -2- completely and expose it.
5. 1.5. Loosen and unscrew oxygen sensor -1- .

  Fig 2: Identifying Left Oxygen Sensor Upstream Of Catalytic Converter
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

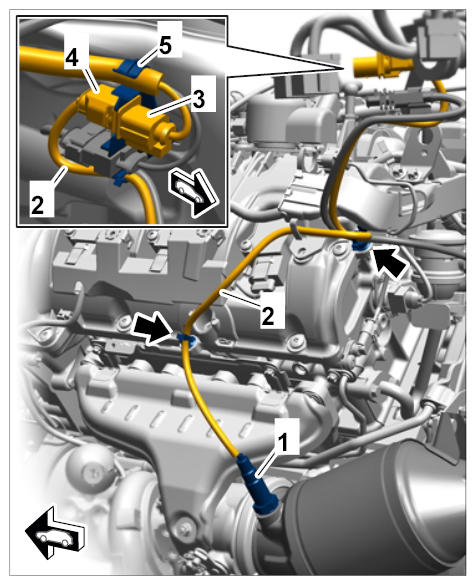

Remove oxygen sensor -1- at the right upstream of catalytic converter.
1. 2.1. Loosen electric line -2- from the holder -3- .
2. 2.2. Loosen tie-wrap -arrow- .
3. 2.3. Release and disconnect electric connector -4- .
4. 2.4. Loosen connector housing -5- from the holder -6- .
5. 2.5. Disconnect electric line -2- completely and expose it.
6. 2.6. Loosen and unscrew oxygen sensor -1- .

  Fig 3: Identifying Right Oxygen Sensor Upstream Of Catalytic Converter
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
