Installing Oxygen Sensors Upstream Of Catalytic Converter

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

After installing the oxygen sensor cables, use the PIWIS Tester 9718 to check that the oxygen sensors have not been interchanged. Release the oxygen sensor cable so that the cable can turn when you unscrew or screw in the sensor. Otherwise, the Check Engine light will come on and there may be a change in the vehicle's exhaust gas behavior.

Carefully coat the thread of the oxygen sensors -1- with 000.043.207.07 and screw in by hand.

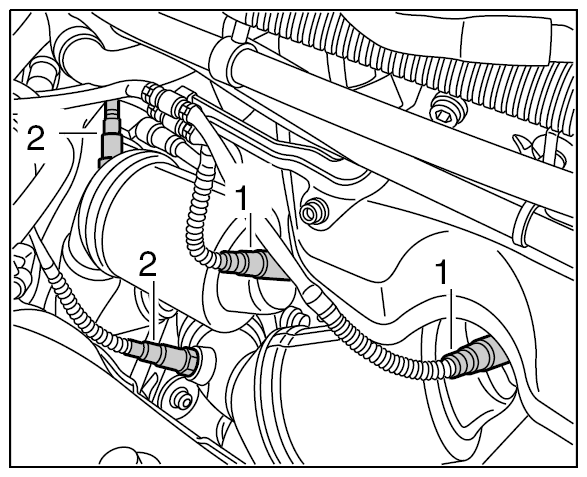

Fig 1: Identifying Oxygen Sensors Installation Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

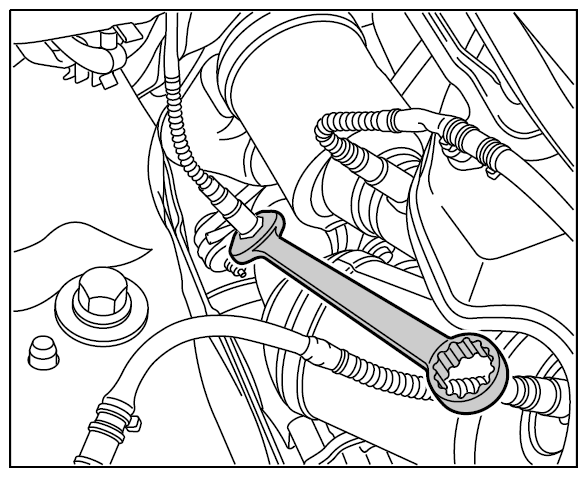

Fig 2: Removing And Installing Oxygen Sensors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

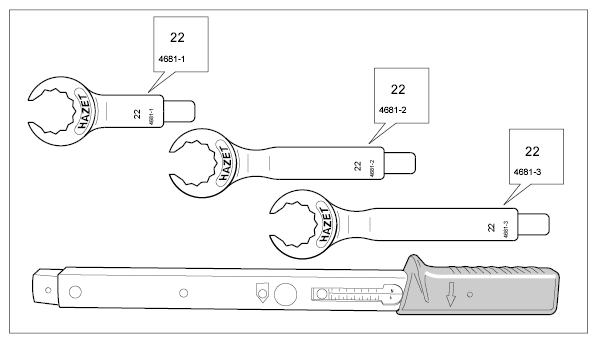

Fig 3: Identifying Special Tools Of Oxygen Sensors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Special Tools For Oxygen Sensors - Accessories For Torque Wrench: Angled Open-End/Ring Wrench Nr. 96-3

→ Special Tools For Oxygen Sensors - Accessories For Torque Wrench: Angled Open-End/Ring Wrench Nr. 97

→ Special Tools For Oxygen Sensors - Accessories For Torque Wrench: Angled Open-End/Ring Wrench For Assembly Nr. 98

→ Special Tools For Oxygen Sensors - Torque Wrench, Signal-Transmitting With Change-Over Ratchet Nr. 90
Route cables for oxygen sensors → Cable plugs on oxygen sensors . Connect oxygen sensors.

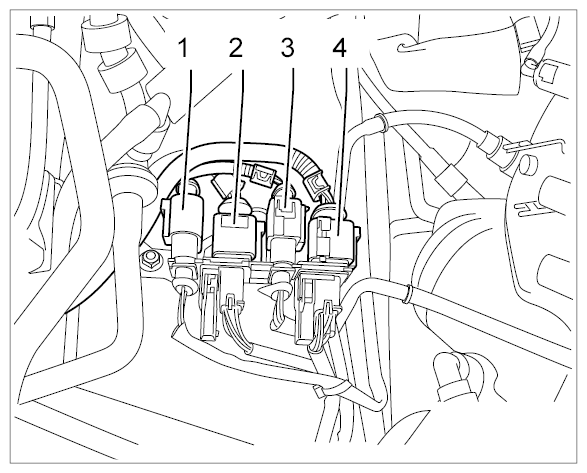

Fig 4: Identifying Cable Plugs On Oxygen Sensors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
