Installing Pressure Regulator

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The pressure regulator is integrated into the connection unit .
The connection unit together with integrated pressure regulator is replaced as a complete unit and not disassembled .

Fit a new seal in the opening of the tank at the left and right. → Seal

Fig 1: Fitting Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull the fuel line on the pressure regulator through the fuel tank to the left connection unit using the attached piece of wire or similar item.
Clip in the fuel line -3- on the left connection unit.

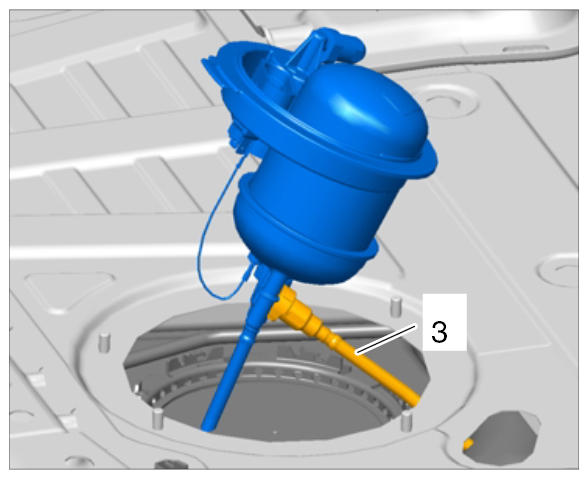

Fig 2: Identifying Fuel Line On Left Connection Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect all connections on the underside of the right connection unit.
Insert the left and right connection unit into the tank. When doing so, make sure that the plastic lugs are pointing forward.
