Removing Vacuum Reservoir

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove vacuum reservoir.
    1. 1.1. Release electric plug connection -1-  for the boost pressure control cycle valve and pull it off.
    2. 1.2. Pull off pressure line -2-  for boost pressure control at the cycle valve.
    3. 1.3. Release and pull off plug connections -3-  for the tank vent line. Unclip tank vent line from the bracket.
    4. 1.4. Release and pull off electric plug connection -4-  for the tank vent valve.
    5. 1.5. Pull off circulating air line -5-  .
    6. 1.6. Release and pull off electric plug connection -6-  for change-over valve for recirculated air.
    7. 1.7. Loosen screw -7-  on the fuel connection line holder.
    8. 1.8. Loosen connections -8-  for the fuel connection line.
    9. 1.9. Loosen screws -9-  on the vacuum reservoir.
    10. 1.10. Remove vacuum reservoir.

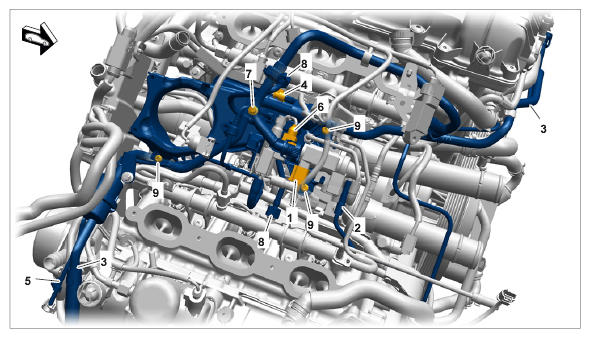

      Fig 1: Overview Of Vacuum Reservoir
      G09933657Courtesy of PORSCHE CARS NORTH AMERICA, INC.
