Installing Vacuum Reservoir

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Tightening Torques, tightening sequence and assembly overviews for the engine and transmission:

Install vacuum reservoir.
1. 1.1. Insert vacuum reservoir.
2. 1.2. Screw in and tighten screws.
3. 1.3. Tighten connections for the fuel connection line.
4. 1.4. Tighten screw on the fuel connection line holder.
5. 1.5. Plug in and lock electric plug connection for change-over valve for recirculated air.
  (Check locking mechanism by pulling on it)
6. 1.6. Plug in and lock electric plug connection for tank vent valve.
  (Check locking mechanism by pulling on it)
7. 1.7. Plug in and lock plug connections for the tank vent line. Clip tank vent line into the bracket.
  (Check locking mechanism by pulling on it)
8. 1.8. Insert pressure line for boost pressure control at the cycle valve.
9. 1.9. Plug in and lock electric plug connection for the boost pressure control cycle valve.
  (Check locking mechanism by pulling on it)

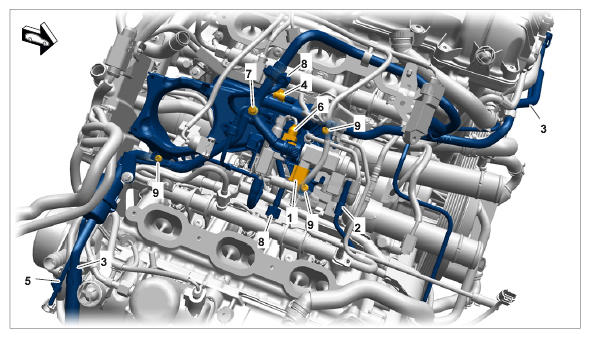

  Fig 1: Overview Of Vacuum Reservoir
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
