Component Overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

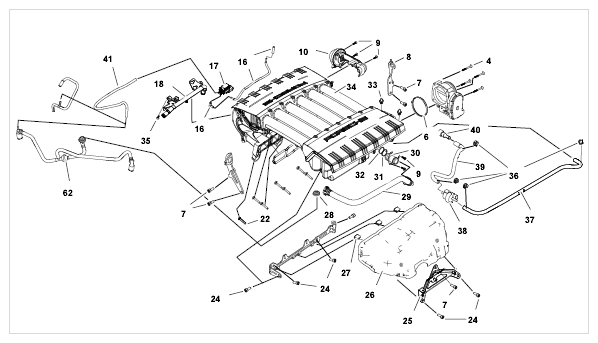

Fig 1: Identifying Intake-Air Distributor And Related Components

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

4 - Screw → Tightening Torque: 7 Nm (5.0 ft. lb.)
6 - Sealing ring; check and replace if damaged
7 - Screw → Tightening Torque: 23 Nm (17 ft. lb.)
8 - Transport eyebolt on exhaust side
9 - Screw
10 - Shift mechanism on variable intake manifold (intake-air distributor)
16 - Vacuum line
17 - Change-over valve
18 - Coolant pipe
22 - Screw → Tightening Torque: 8 Nm (6.0 ft. lb.)
24 - Screw → Tightening Torque: 20 Nm (15 ft. lb.)
25 - Support
26 - Heat protection panel (cover plate)
27 - Clamp
28 - Plug (vacuum)
29 - Positive crankcase ventilation
30 - Heat socket
31 - Sealing ring
32 - Sealing ring
33 - Locking pin
34 - Intake-air distributor (intake module)
35 - Coolant pipe screw
36 - Spring band clamp
37 - Tank ventilation (active carbon filter) hose
38 - Tank ventilation (active carbon filter) valve
39 - Tank ventilation (active carbon filter) hose
40 - Rapid-action coupling
41 - Vacuum line
62 - Brake booster vacuum line

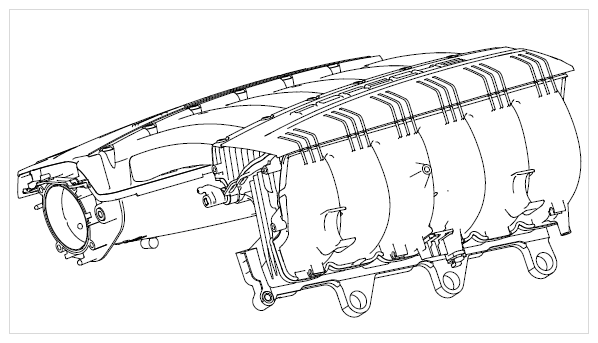

Fig 2: Identifying Intake Distributor (Bottom)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

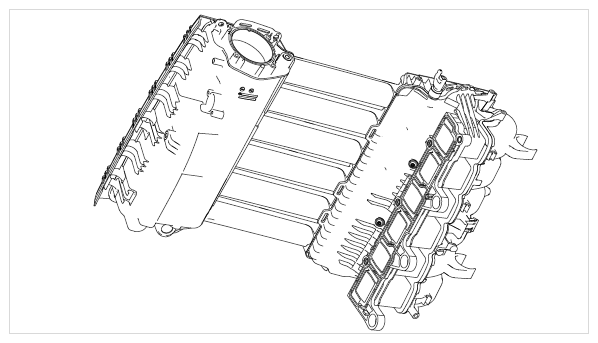

Fig 3: Identifying Intake Distributor (Side)
