Installing Hot-Film Mass Air Flow Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press air flow sensor onto connecting tube. Make sure the clip connections on the air cleaner side engage correctly. Fasten hose clamp.
  2. Connect cable plug for mass air flow meter.

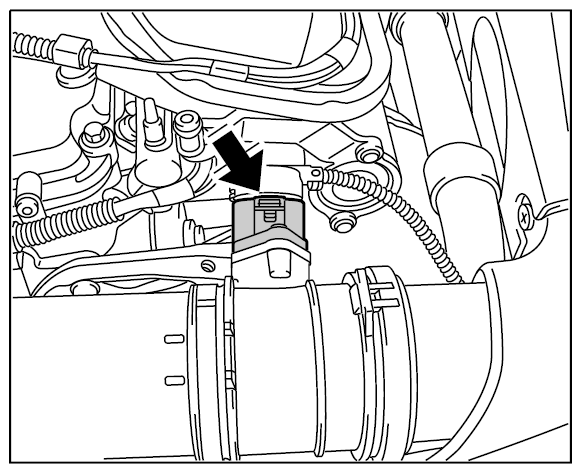

    Fig 1: Locating Cable Plug Of MAF Sensor
    G09933607Courtesy of PORSCHE CARS NORTH AMERICA, INC.
