Removing Throttle Housing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

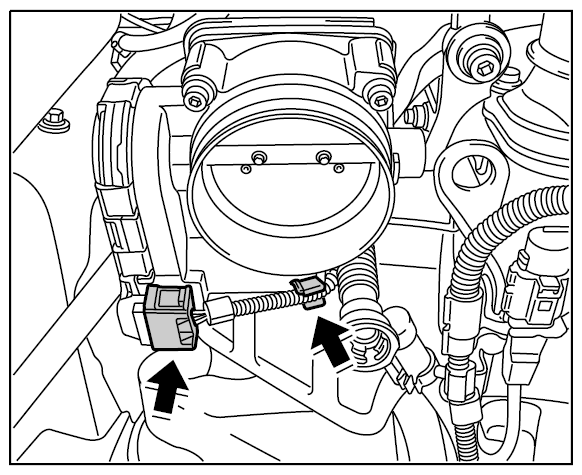

  1. Pull off cable plugs on the throttle housing and pull cable out of the clip -arrows-  .
    Fig 1: Locating Cable Clips On Throttle Adjuster
    G09933600Courtesy of PORSCHE CARS NORTH AMERICA, INC.

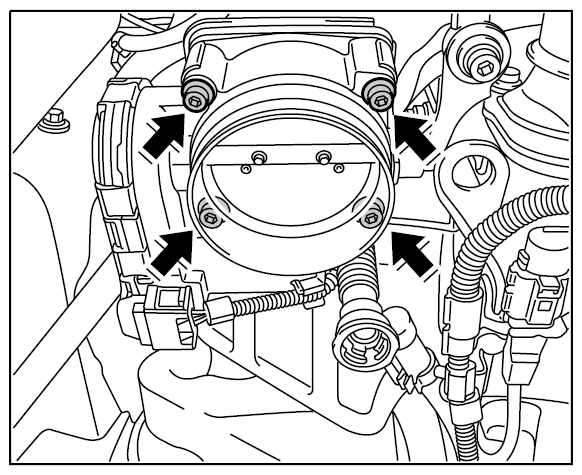

  2. Loosen the four screws on the throttle housing -arrows-  . Remove throttle housing and check the condition of the sealing ring. Replace the sealing ring if necessary.
    Fig 2: Loosening Throttle Housing
    G09933601Courtesy of PORSCHE CARS NORTH AMERICA, INC.
