Throttle Housing And Intake System

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

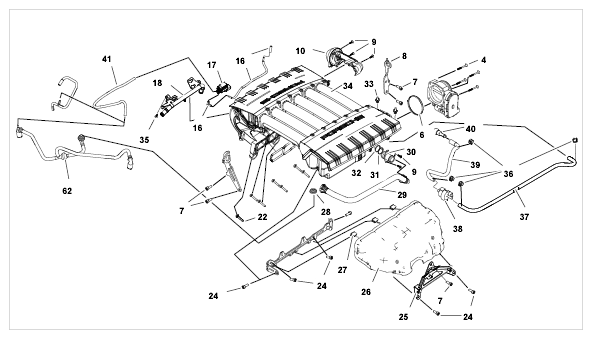

Fig 1: Identifying Intake System And Related Components
G09933602Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 4  - Screw → Tightening Torque: 7 Nm (5.0 ft. lb.)
  2. 6  - Sealing ring; check and replace if damaged
  3. 7  - Screw → Tightening Torque: 23 Nm (17 ft. lb.)
  4. 8  - Transport eyebolt on exhaust side
  5. 9  - Screw
  6. 10  - Shift mechanism on variable intake manifold (intake-air distributor)
  7. 16  - Vacuum line
  8. 17  - Change-over valve
  9. 18  - Coolant pipe
  10. 22  - Screw → Tightening Torque: 8 Nm (6.0 ft. lb.)
  11. 24  - Screw → Tightening Torque: 20 Nm (15 ft. lb.)
  12. 25  - Holder
  13. 26  - Heat shield (cover plate)
  14. 27  - Clamp
  15. 28  - Plug (vacuum)
  16. 29  - Positive crankcase ventilation
  17. 30  - Heat socket
  18. 31  - Sealing ring
  19. 32  - Sealing ring
  20. 33  - Locking pin
  21. 34  - Intake-air distributor (intake module)
  22. 35  - Coolant pipe screw
  23. 36  - Spring band clamp
  24. 37  - Tank ventilation (active carbon filter) hose
  25. 38  - Tank ventilation (active carbon filter) valve
  26. 39  - Tank ventilation (active carbon filter) hose
  27. 40  - Rapid-action coupling
  28. 41  - Vacuum line
  29. 62  - Brake booster vacuum line

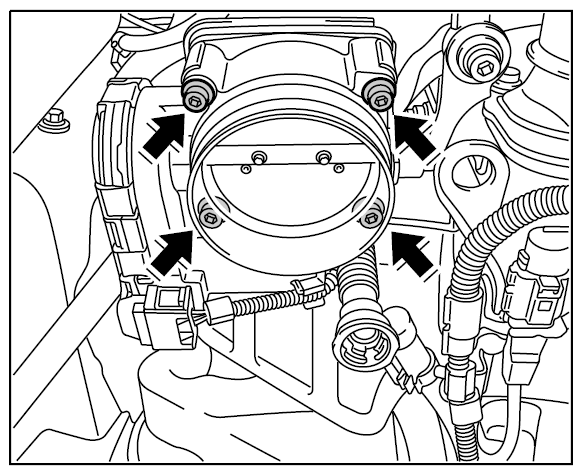

  1. Check the condition of the sealing ring for the throttle housing. Replace the sealing ring if necessary. Place throttle housing in installation position. Fit and tighten the four screws on the throttle housing -arrows-  . → Tightening Torque: 7 Nm (5 ft. lb.)
    Fig 2: Tightening Throttle Housing
    G09933603Courtesy of PORSCHE CARS NORTH AMERICA, INC.

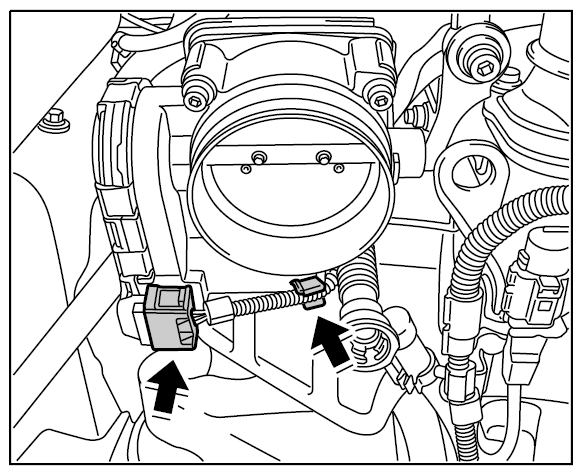

  2. Attach cable plugs and cable to throttle housing -arrows-  .
    Fig 3: Locating Cable Clips On Throttle Adjuster
    G09933604Courtesy of PORSCHE CARS NORTH AMERICA, INC.
