Replacing Teflon Sealing Ring

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Incorrect handling of injectors

Leaks in combustion chamber

→ Teflon sealing rings must always be replaced after removal and before refitting injectors.

→ Do not replace Teflon sealing rings until just before fitting the injector.

→ Install injector immediately after replacing the Teflon sealing ring.

Information

The pictures shown in this document may differ from the original .

Information

The tool numbers refer to the individual parts of the tools in the Repair Kit T10133 and the Supplement Set T10133/11-15 (unless indicated otherwise).

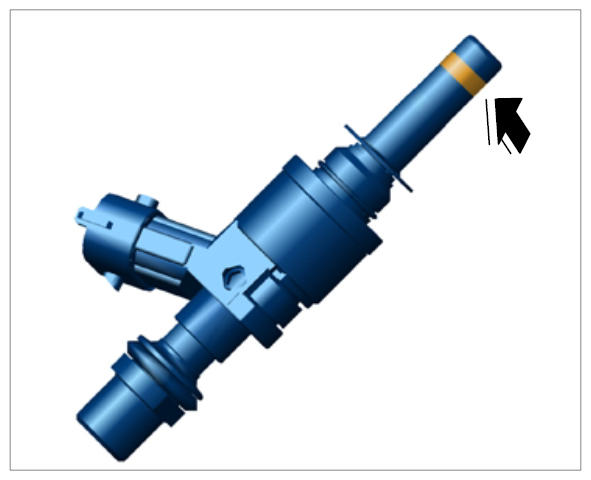

Installation Position Of Teflon Sealing Ring: -arrow-

Fig 1: Identifying Teflon Sealing Ring Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove high-pressure fuel injector.

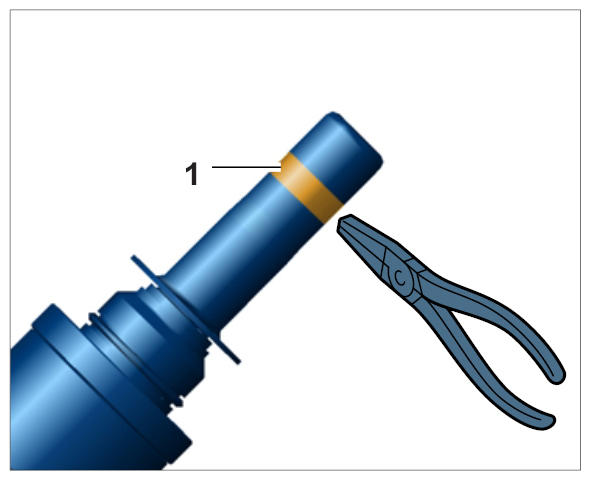

Clean fuel injector carefully using a plastic brush (or cloth) and acetone or solvent naphtha. Hold Teflon sealing ring gently using a pointed-nose pliers and carefully pull off Teflon sealing ring -1- . Do not scratch the valve body.

Fig 2: Removing Teflon Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Also clean sealing ring groove in the sealing ring area. Remove any deposits (coking).

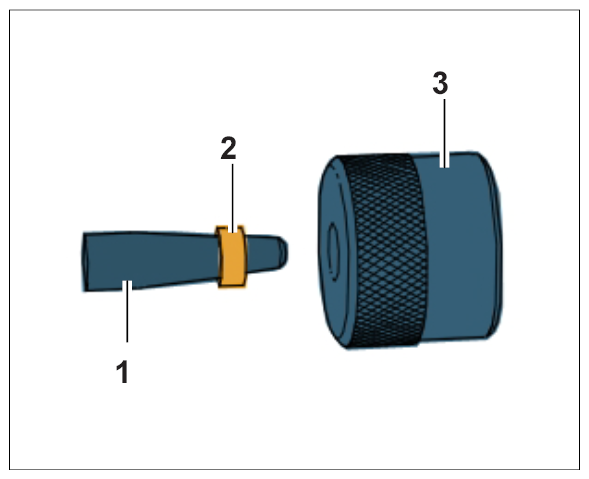

Fit new sealing ring -2- on mounting cone no. 5 -1- . Using assembly sleeve no. 6 -3- (knurling facing the sealing ring), push sealing ring gently as far as it will go onto mounting cone no. 5.

Fig 3: Identifying Teflon Sealing Ring On Mounting Cone
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

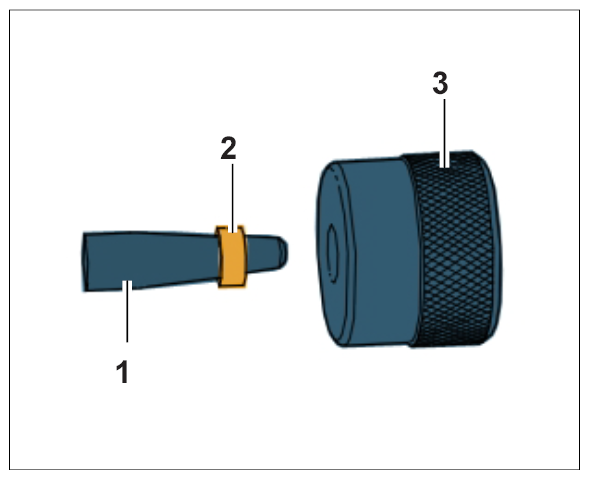

Turn assembly sleeve no. 6 -3- around (knurled side now no longer facing sealing ring), and push sealing ring -2- onto the end of mounting cone no. 5 -1- .

Fig 4: Identifying Assembly Sleeve Turned Around
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

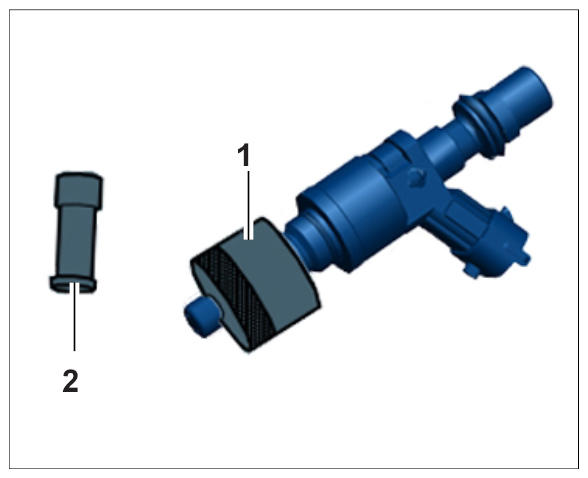

Place mounting cone no. 5 with sealing ring onto the fuel injector from the front -1- . Push sealing ring further onto the fuel injector using assembly sleeve no. 6 -2- .

Fig 5: Fitting Teflon Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

The Sealing Ring Is Not Yet Seated In Its Groove!

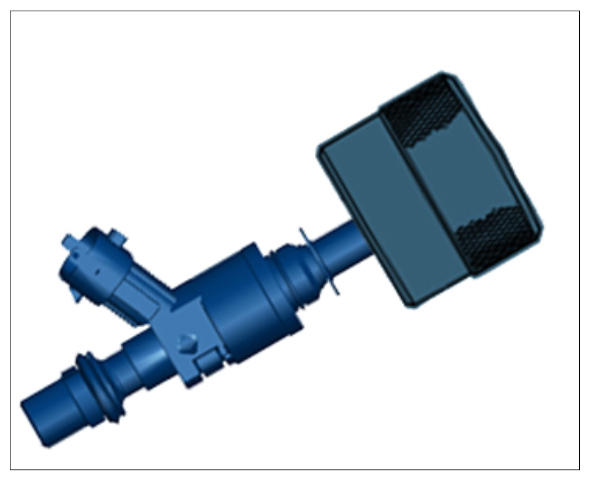

Remove assembly sleeve no. 6 and mounting cone no. 5. Push sealing ring into the ring groove using assembly sleeve no. 6. → Pushing Teflon sealing ring into ring groove
Calibration (Shaping) Of Teflon Sealing Ring:

Fig 6: Pushing Teflon Sealing Ring Into Ring Groove
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

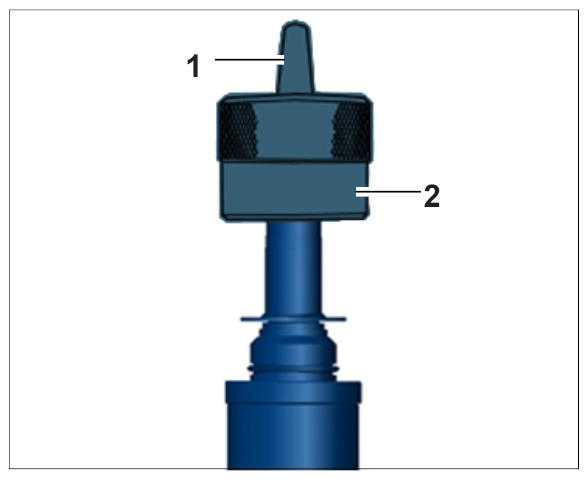

1. 7.1. Press calibrating sleeve no. 8 -1- as far as it will go over the sealing ring. Leave calibrating sleeve no. 8 → Time: 1 Minute on the sealing ring. If calibrating sleeve no. 8 does not fit immediately because the Teflon sealing ring has expanded, use calibrating sleeve no. 7 in the same way as in the previous step.

  Fig 7: Calibrating Teflon Sealing Ring
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 7.2. Pull off calibrating sleeve no. 8 again.
  The Teflon Sealing Ring Now Has The Correct Installation Dimension .
The injector should now be installed immediately, as the Teflon sealing ring will soon start to swell (prevents leaks when installed). Otherwise leave calibrating sleeve no. 8 -1- on the Teflon sealing ring for longer or fit calibration cap (transport sleeve for new injectors) -2- .
