Component Overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

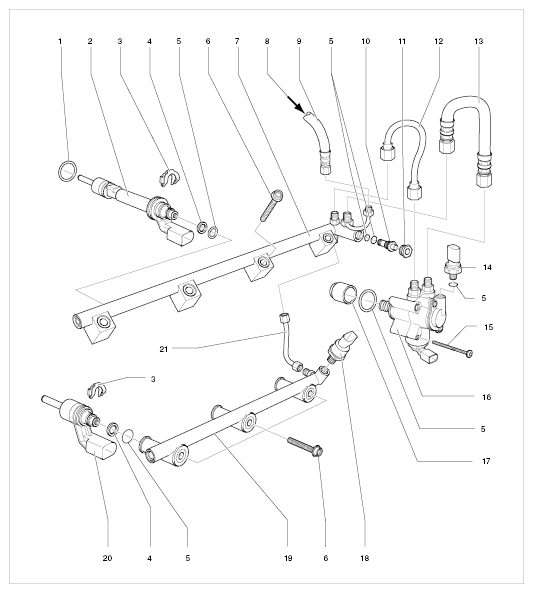

Fig 1: Identifying DFI Injection System And Related Components
G09933567Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Sealing ring on long fuel injectors for cylinders 1, 3 and 5; replace; coat with clean engine oil
  2. Long fuel injectors for cylinders 1, 3 and 5 Long Fuel Injectors Must Not Be Disassembled!
  3. Spring element; replace; ensure secure seating
  4. Support washer; replace if damaged
  5. Sealing ring; not used on the Cayenne
  6. Screw M8 x 55; replace; tighten fuel distributor evenly from the inside out; → Tightening Torque: 30 Nm (22 ft. lb.)  , then → Torque angle: 90°
  7. Fuel distributor for cylinders 1, 3 and 5; the spring elements of the fuel injectors must always be replaced before installation; tighten evenly from the inside out
  8. from fuel tank
  9. Fuel supply hose (low-pressure line); counter with a wrench at the supply line of the fuel distributor when loosening and tightening the union nut; pay attention to marking
  10. Pressure control valve; replace removed valve; press in by hand using 8 mm hexagon wrench
  11. → Tightening Torque: 22 Nm (16 ft. lb.)
  12. Fuel high-pressure line → Tightening Torque: 22 Nm (16 ft. lb.)  ; the fuel pressure in the high-pressure line can reach 120 bar! Wear goggles and protective clothing to prevent injury and skin contact. Place a cloth around the connection before loosening the fuel lines. Then release pressure by carefully loosening the union nuts; counter with a wrench at the adapter for the high-pressure pump when loosening and tightening the union nut; before installation: first re-tighten the adapter at the high-pressure pump → Tightening Torque: 40 Nm (30 ft. lb.)  ; do not install too tightly; to install, first tighten the union nuts by hand
  13. Fuel low-pressure line → Tightening Torque: 27 Nm (20 ft. lb.)  ; counter with a wrench at the adapter for the high-pressure pump when loosening and tightening the union nut; before installation: first re-tighten the adapter at the high-pressure pump; → Tightening Torque: 28 Nm (21 ft. lb.)  ; do not install too tightly; to install, first tighten the union nuts by hand
  14. Fuel pressure sensor for low pressure; not installed in the Cayenne
  15. → Tightening Torque: 10 Nm (7.5 ft. lb.)
  16. High-pressure pump; with control valve for fuel pressure; counter with a wrench at the adapter when loosening and tightening the fuel lines;
  17. Tappet; coat with clean engine oil before installing
  18. Fuel pressure sensor → Tightening Torque: 22 Nm (16 ft. lb.)  ; coat front sealing ball and thread with clean engine oil before fitting
  19. Fuel distributor for cylinders 2, 4 and 6; the spring elements of the fuel injectors must always be replaced before installation; tighten evenly from the inside out
  20. Short fuel injectors for cylinders 2, 4 and 6
  21. Connecting line; do not install too tightly; to install, first tighten the union nuts by hand; → Tightening Torque: 22 Nm (16 ft. lb.)
