Installing Air Guide

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

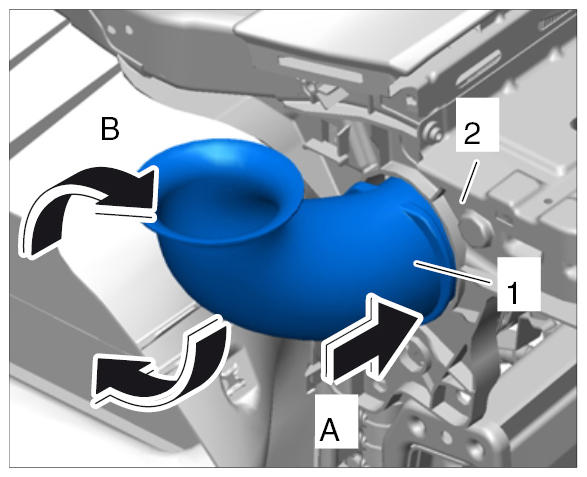

Slide the air guide -1- through the lock carrier -2- into the vehicle -A- while turning it clockwise -B- .
When guiding in the air guide, make sure not to kink the edge on the lock carrier.

Fig 1: Installing Air Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Make sure that the air box on the air guide is seated correctly in the sound absorber on the lock carrier.

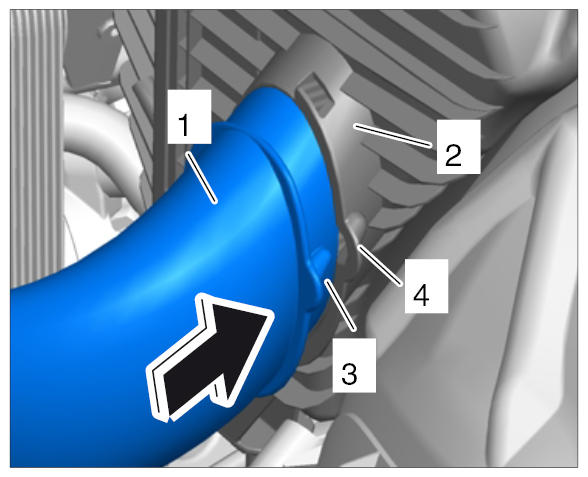

Insert the air guide -1- into the air cleaner housing -2- from the wheel housing and engage the retaining lugs -3- into the cut-outs -4- on the air cleaner housing.

Fig 2: Fitting Air Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
