Removing Air Box For Throttle Housing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove engine cover.
  2. Remove air box for throttle housing -1-  .
    1. 2.1. Release and disconnect electric connector -2-  for pressure sensor.
    2. 2.2. Loosen clamp -3-  and pull off vacuum line -4-  .
    3. 2.3. Loosen clamp -5-  and pull off fuel positive crankcase ventilation line -6-  . Replace clamp.
    4. 2.4. Loosen vacuum line for recirculating air valve -7-  from air box for throttle valve -1-  at the bottom.
    5. 2.5. Loosen screw-type clamps -8-  and pull off pressure hoses -9-  .
    6. 2.6. Turn air box for throttle valve -1-  in -direction of arrow-  and remove it by pulling it forward.

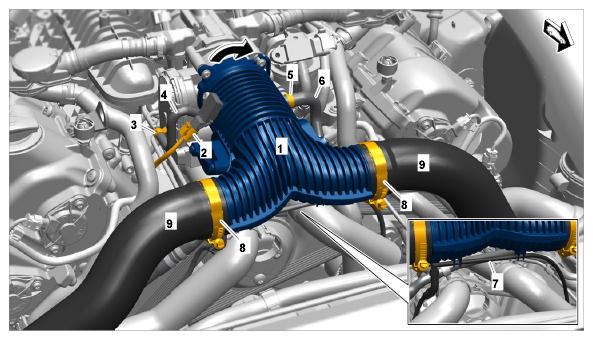

      Fig 1: Identifying Air Box For Throttle Housing
      G09933554Courtesy of PORSCHE CARS NORTH AMERICA, INC.
