Installing Air Box For Throttle Housing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install air box for throttle housing -1-  .
    1. 1.1. Fit air box for throttle valve -1-  and turn it in the Opposite Direction  to direction of arrow.
    2. 1.2. Connect electric connector -2-  for pressure sensor.
    3. 1.3. Connect vacuum line -4-  and secure with a clamp -3-  .
    4. 1.4. Connect positive crankcase ventilation line -6-  and secure using a New  clamp -5-  .
    5. 1.5. Secure vacuum line for recirculating air valve -7-  to air box for throttle valve -1-  at the bottom.
    6. 1.6. Connect pressure hoses -9-  and secure with screw-type clamps -8-  .

      Tightening Torque for screw-type clamp -8-  :

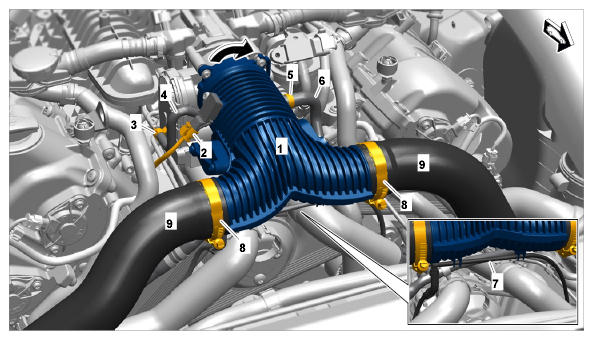

      Fig 1: Identifying Air Box For Throttle Housing
      G09933555Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install engine cover.
