Installing Fuel Distributor Pipe

→ Check that the purge connection of the fuel distribution pipe is seated securely.

→ Tighten the purge connection of the fuel distribution pipe to the correct tightening torque.

Information

The tightening specifications for the basic engine are stored centrally (→ 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES, ASSEMBLY OVERVIEWS ).

Tightening Torques and assembly instructions for other assemblies (e.g. chassis, electrics, transmission or body) or for peripheral engine equipment can be found in the corresponding documents.

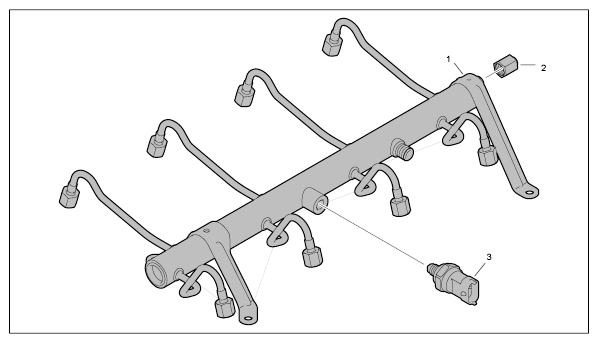

Fig 1: Identifying Fuel Distributor Pipe And Related Components

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. -1-  - Fuel distributor pipe (fuel gallery, rail)
2. -2-  - Stopper, purge connection
3. -3-  - High-pressure sensor

1. Using the leak test equipment, blow the fuel out of the high-pressure pump and the high-pressure line into a cloth.

   Shake the fuel distributor pipe over a cloth to remove fuel residues. → 243001 CHECKING FUEL DISTRIBUTOR PIPE FOR LEAKS .

2. Fit fuel rail on the engine by twisting it -arrow-  .

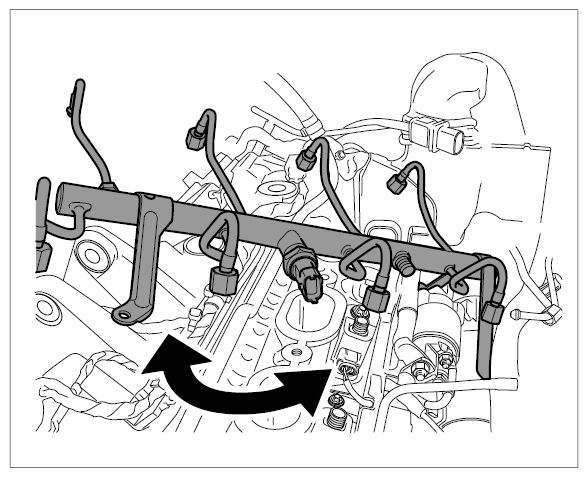

   Fig 2: Fitting Fuel Rail On Engine

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   When fitting the union nuts, make sure that the connection taper of the high-pressure line is loose in the injector. It should be possible to screw on the union nut easily without greasing it and without the use of force (check that it is straight and screws on easily). Loosen the injector retainers and correct the positions of the various components if necessary.

3. Fit fuel rail.

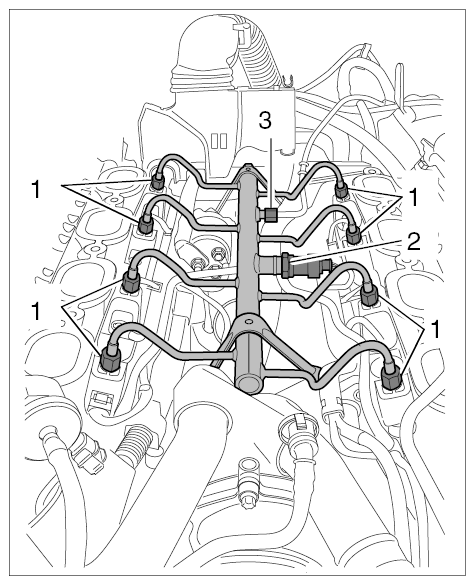

   Fig 3: Identifying High-Pressure Fuel Distribution

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 3.1. Carefully lift up the coolant vent line at the rear if necessary and slide the fuel rail into installation position.
   2. 3.2. Screw fuel rail on loosely. Screw union nuts loosely onto the injectors.

      Information

      When fitting the union nuts, make sure that the connection taper of the high-pressure line is loose in the injector. It should be possible to screw on the union nut easily without greasing it and without the use of force (check that it is straight and screws on easily). Loosen the injector retainers and correct the positions of the various components if necessary.

      Only Fit Screws And Union Nuts -1- Loosely Until Everything Fits!

   3. 3.3. Also fit the high-pressure line -3-  between the rail and high-pressure pump.
4. Fit screws on fuel distributor pipe (fuel rail) -1 and 2-  .

   The screw on the thermostat housing is longer.

   The rear right screw can only be reached using a long, thin Torx wrench.

   Fig 4: Identifying Fuel Distributor Pipe Mount And Related Components

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. Screw, M6 x 16
   2. Screw, M6 x 25
   3. Connection for high-pressure line
   4. Connection to injector (high-pressure fuel injector)
5. When all threaded joint positions fit correctly and without tension, tighten all threaded joints according to the prescribed tightening torques.

   The union nuts for the injectors and the high-pressure feed line must first be tightened initially, then loosened and then tightened finally.

   Use an open socket Socket-Wrench Insert Nr. 18-1 → Socket  or similar tool to screw on the injectors.

   Fasten the high-pressure line with an Open-Ended Socket Ring Wrench Nr. 185  and a torque wrench.

   It is essential to comply with the tightening torques → 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES, ASSEMBLY OVERVIEWS

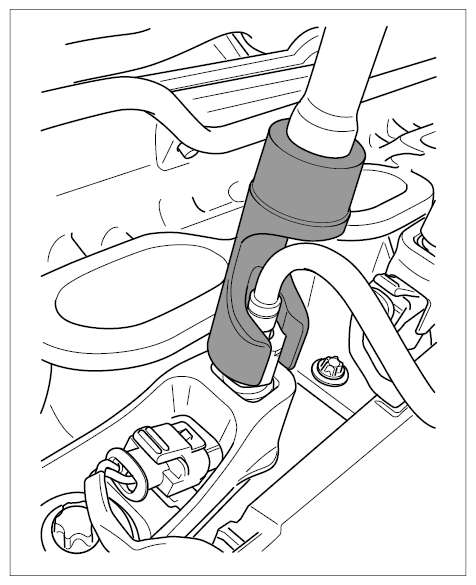

   Fig 5: Open-Ended Socket Ring Wrench

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Check the high-pressure system for leaks. → 243001 CHECKING FUEL DISTRIBUTOR PIPE FOR LEAKS .
7. Plug in electric plug connection on the high-pressure sensor. -2-
   Fig 6: Identifying High-Pressure Fuel Distribution

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
