Component Overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

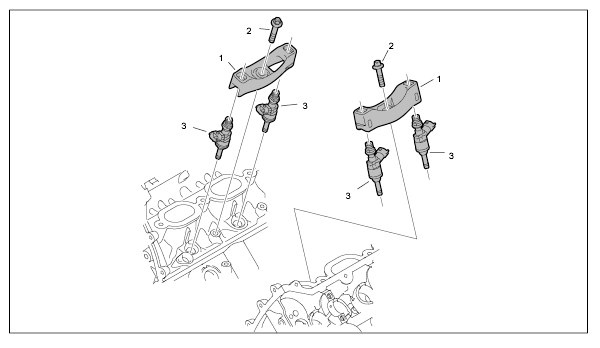

Fig 1: Identifying Fuel Injectors And Related Components
G09933515Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. -1-  - Retainer for injectors; with twist lock and cut-out for the injector's color clip
  2. -2-  - M8 screw
  3. -3-  - High-pressure fuel injector

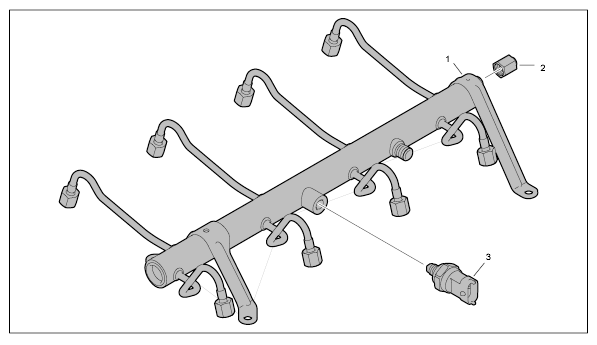

Fig 2: Identifying Fuel Distributor Pipe And Related Components
G09933516Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. -1-  - Fuel distributor pipe (fuel gallery, rail)
  2. -2-  - Stopper
  3. -3-  - High-pressure sensor

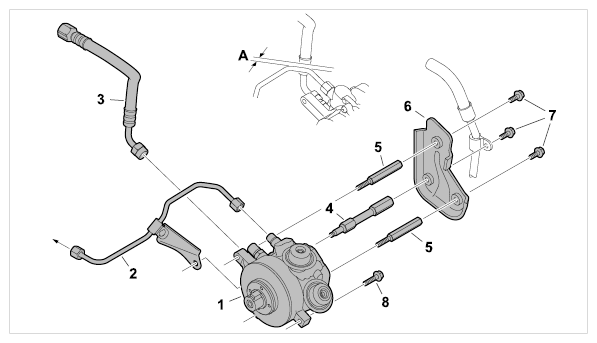

Fig 3: Identifying High-Pressure Pump And Related Components (Turbo Engine)
G09933517Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. -1-  - High-pressure pump; replace sealing ring
  2. -2-  - High-pressure line; screw on both union nuts hand-tight, align union nut no. 4
  3. -3-  - Low-pressure line (fuel line); counter at the high-pressure pump hexagon; maintain distance from high-pressure line
  4. -4-  - Screw socket for high-pressure line
  5. -5-  - Screw socket for high-pressure pump
  6. -6-  - Crash panel
  7. -7-  - Screws on crash panel
  8. -8-  - Screw on high-pressure pump
  9. -A-  - Naturally aspirated and turbo engine; maintain distance from high-pressure line

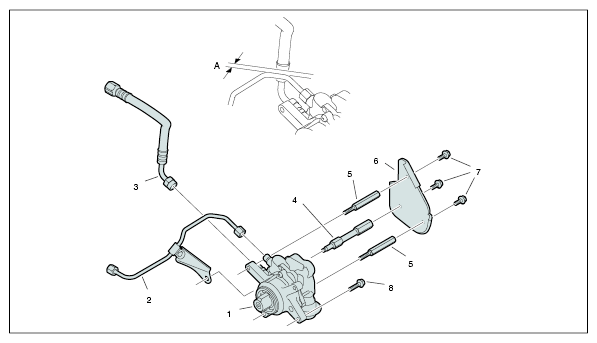

Fig 4: Identifying High-Pressure Pump Related Components (Naturally Aspirated Engine)
G09933518Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. -1-  - High-pressure pump; replace sealing ring
  2. -2-  - High-pressure line; screw on both union nuts hand-tight, align union nut no. 4
  3. -3-  - Low-pressure line (fuel line); counter at the high-pressure pump hexagon; maintain distance from high-pressure line
  4. -4-  - Screw socket for high-pressure line
  5. -5-  - Screw socket for high-pressure pump
  6. -6-  - Crash panel
  7. -7-  - Screws on crash panel
  8. -8-  - Screw on high-pressure pump
  9. -A-  - Naturally aspirated and turbo engine; maintain distance from high-pressure line
