Installing High-Pressure Sensor (Rail Pressure Sensor)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Visually check the thread and sealing cone to make sure they are not damaged.
  2. It must be possible to turn the high-pressure sensor slightly by hand. Lightly lubricate the high-pressure sensor with engine oil.
  3. Screw on high-pressure sensor using a long socket (e.g. Hazet 900 Lg Socket-Wrench Insert Nr. 188  or a similar tool) -3-  . → Tightening Torque: 22 Nm (16 ft. lb.)

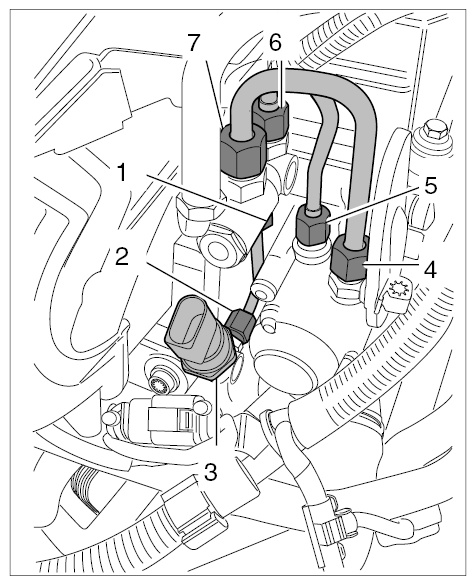

    Fig 1: Identifying High-Pressure Sensor
    G09933487Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Connect cable plug for high-pressure sensor.
  5. Check high-pressure distributor pipe for leaks. Following a test drive, visually inspect the high-pressure sensor with a mirror and lamp at idle speed.
