Removing Crankshaft Pulse Sender

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Press the two coolant hoses aside and remove screw on oil dipstick. Pull out oil dipstick. -1-

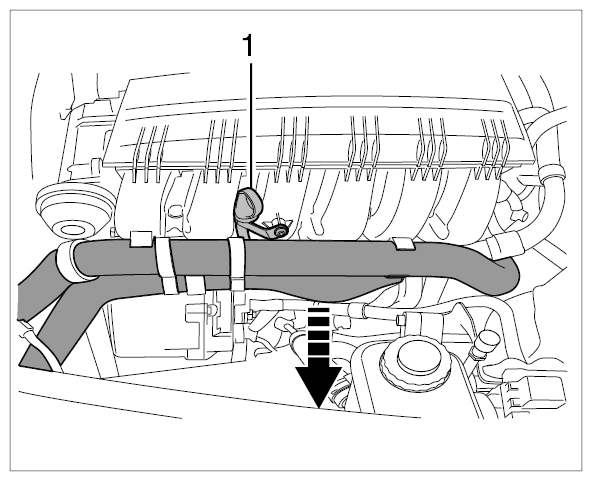

Fig 1: Moving Coolant Hoses
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- The cable plug for the crankshaft pulse sender is secured in a difficult-to-reach position at the guide tube for the oil dip stick .
Press the cable plug for the crankshaft pulse sender at the guide tube for the oil dip stick towards the cylinder block (only pushed in) -arrow- . Then disconnect the cable plug.

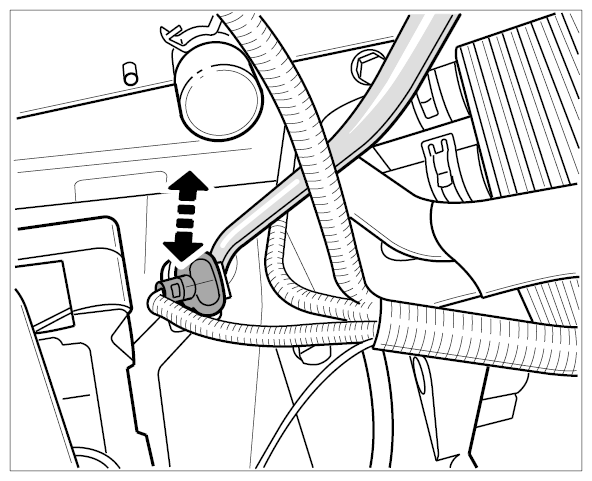

Fig 2: Removing Cable Plug Of Crankshaft Pulse Sender
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- The cable for the crankshaft pulse sender is installed between the cylinder block and the oil filter housing/engine support arm .
Remove crankshaft pulse sender by loosening the fastening screw -arrow- . Pull crankshaft pulse sender out of the cylinder block. Carefully pull out the cable.

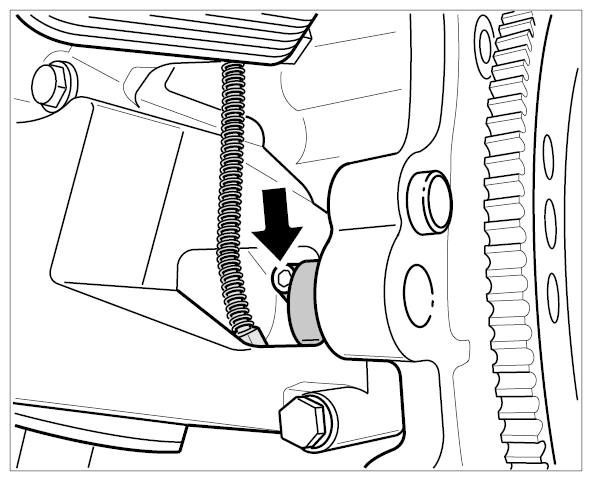

Fig 3: Locating Crankshaft Pulse Sender
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

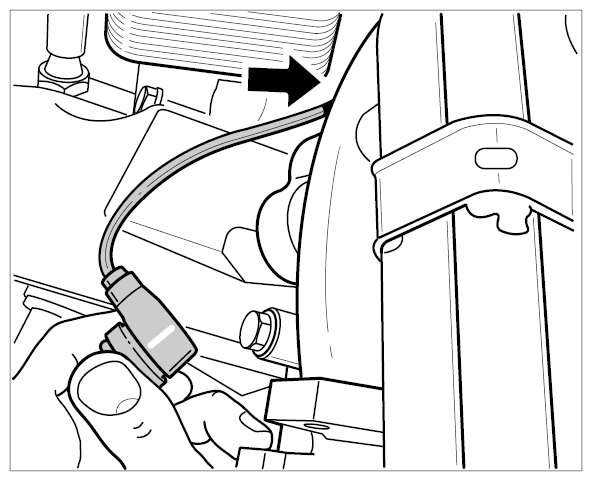

Fig 4: Pulling Out Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
