Installing Crankshaft Pulse Sender

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Check the sealing ring on the crankshaft pulse sender and replace it if necessary .

Fit crankshaft pulse sender into the cylinder block. Align and screw fastening screw in hand-tight.

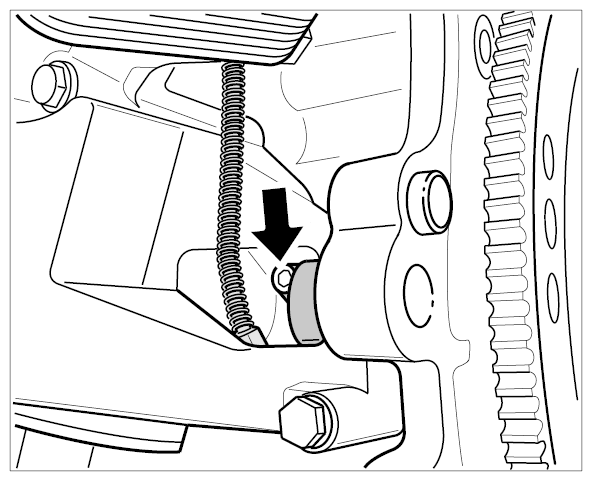

Fig 1: Locating Crankshaft Pulse Sender
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten the fastening screw. Crankshaft pulse sender → Tightening Torque: 10 Nm (7.5 ft. lb.)
Use a wire or auxiliary cable to guide the cable for the crankshaft pulse sender between the cylinder block and oil-filter housing/engine carrier.
Connect cable plug and slide onto oil dip stick guide tube.

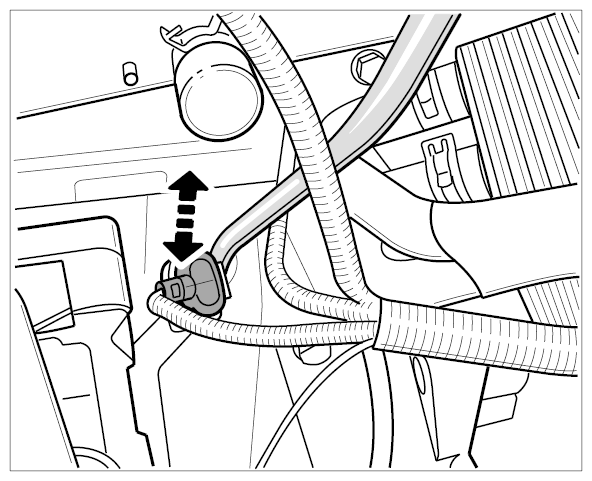

Fig 2: Connecting Cable Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press the two coolant hoses onto the intake-air distributor and fit screw on oil dipstick. Insert dipstick. -1-

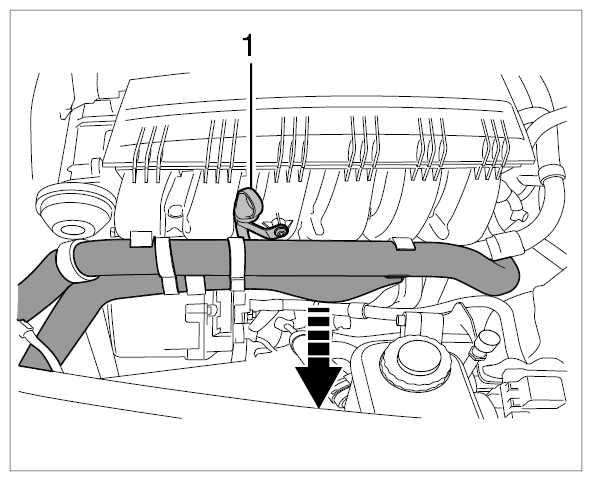

Fig 3: Moving Coolant Hoses
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
