Removing Crankshaft Pulse Sender

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove crankshaft pulse sender.
    1. 1.1. Release and pull off electric connector.
    2. 1.2. Unscrew screw -2-  and pull out the crankshaft pulse sender -1-  .

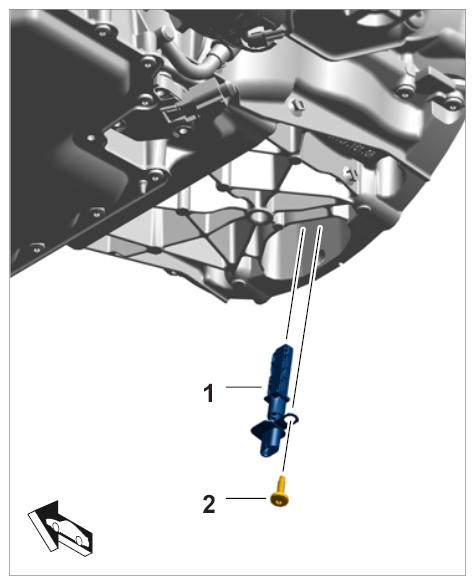

      Fig 1: Identifying Crankshaft Pulse Sender
      G09934275Courtesy of PORSCHE CARS NORTH AMERICA, INC.
