Removing Left Knock Sensor
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- The left knock sensor is difficult to reach under the intake-air distributor. First, remove the intake-air distributor. → 244619 REMOVING AND INSTALLING DFI INTAKE-AIR DISTRIBUTOR

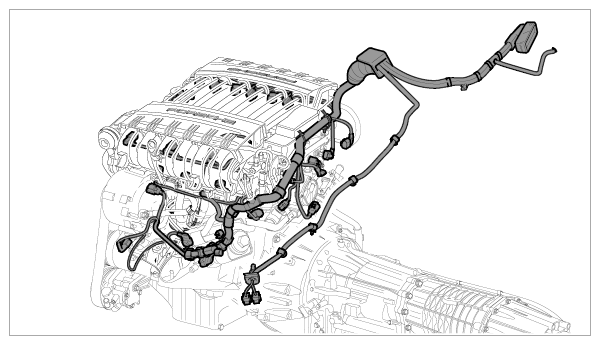

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

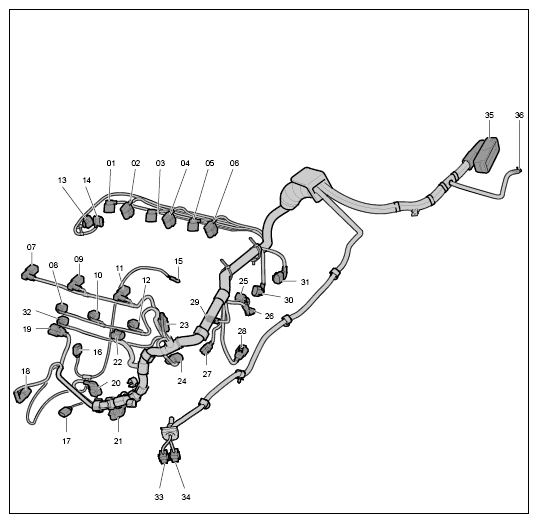

- 1-6 - Connectors For Bar Ignition Module For Cylinders 1-6
- 7-12 - Connectors For High-Pressure Fuel Injectors (DFI) For Cylinders 1-6
- 13 - Throttle Valve Connector
- 14 - Crankcase Heater Connector
- 15 - Starter Lead For Terminal 50
- 16 - Knock Sensor Connector On DFI engines, Right
- 17 - Connector For Oil Level Sensor
- 18 - Connector For Air-Conditioning Compressor
- 19 - Connector For Generator
- 20 - Crankshaft Pulse Sender On DFI Engines
- 21 - Connector For Oil Pressure Switch
- 22 - Connector For Knock Sensor On DFI Engines, Left
- 23 - Connector For High-Pressure Sensor
- 24 - Connector For Flow Control Valve
- 25-26 - Connectors For Hydraulic Valves For Camshaft Control On DFI Engines
- 27 - Connector For Coolant Temperature Gauge
- 28 - Connector For Additional Coolant Pump
- 29-30 - Connectors For Hall Senders (Camshafts) On DFI Engines
- 31 - Connector For Carbon Canister Valve
- 32 - Connector For Intake Pipe Switchover Valve
- 33-34 - Plug Connections Between Engine Wire Harness And Main Wire Harness
- 35 - Connector For DME Control Unit
- 36 - Ground Strap
- Pull cable plug off the knock sensor.
- Remove fastening screw and knock sensor.
