Installing Right Knock Sensor
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
- Observe the specified Tightening Torque for the knock sensor screw .
- Align the housing and cable plug for the knock sensor in such a way that they are not touching .
- Otherwise, there is no guarantee that the knock sensor will work correctly .
Information
- Clean contact surface of knock sensor with a cloth .
- Position knock sensor with fastening screw on the cylinder block. Route the cable so that it is facing the front of the vehicle. Clip in cable. Tighten fastening screw. → Tightening Torque: 20 Nm (15 ft. lb.)

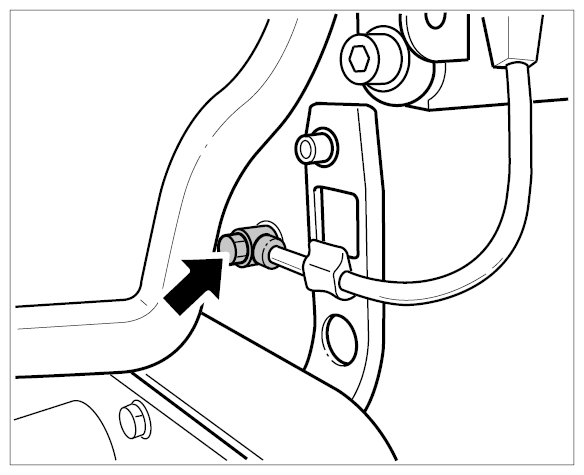

- Fit cable plug.
- Fit the intake manifold. → 243519 REMOVING AND INSTALLING AIR BOX FOR THROTTLE HOUSING ON DFI ENGINES (INTAKE PIPES UPSTREAM OF THROTTLE VALVE)
