Removing Knock Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Observe and note installation position of knock sensors.

    Pull off cable plug -1-  . -arrow-

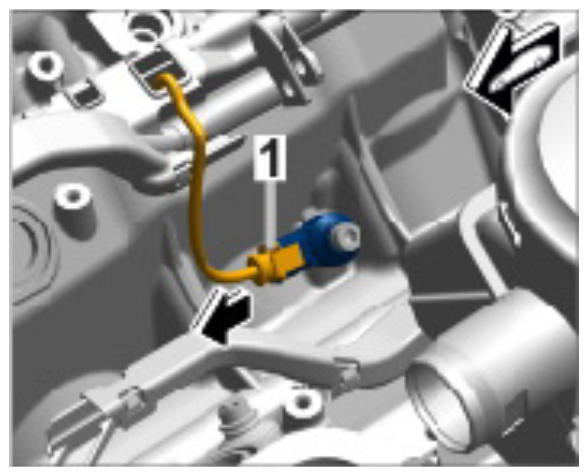

    Fig 1: Removing Cable Plug For Knock Sensor
    G09934265Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Loosen and unscrew fastening screw -2-  and remove knock sensor -1-  from the crankcase.

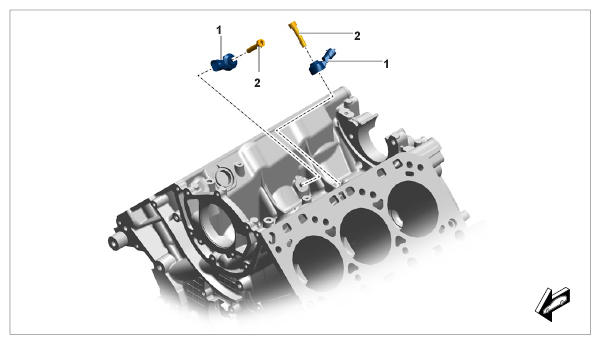

    Fig 2: Identifying Knock Sensors
    G09934266Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Knock sensor
    2. Screw, M8 x 35
