Installing Knock Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Tightening Torques, tightening sequence and assembly overviews for the engine and transmission:

Information

Observe the specified Tightening Torque for the knock sensor screw .
Align the housing and cable plug for the knock sensor in such a way that they are not touching .
Otherwise, there is no guarantee that the knock sensor will work correctly .

Information

Clean contact surface of knock sensor with a cloth .

Install knock sensors -1- . Make sure that the knock sensors are aligned as shown in the illustration.

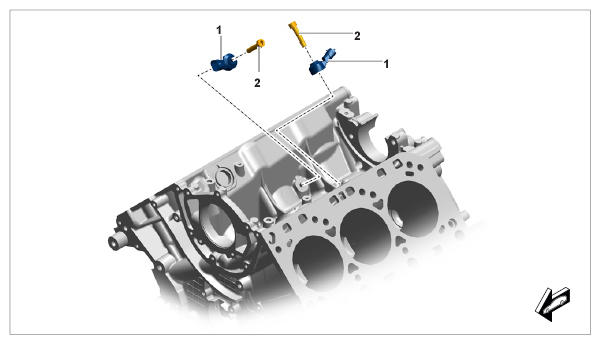

Fig 1: Identifying Knock Sensors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Knock sensor
2. Fastening screw, M8 x 35
Tighten fastening screws -2- .
Connect cable plug.
