Removing Spark Plugs

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Broken spark plug electrodes

Bits of electrodes can fall into the combustion chamber

→ Only check electrode gap of spark plugs, but do not bend them.

→ Spark plugs with an incorrect electrode gap must be replaced.

Information

Only use spark plugs approved by Porsche AG!
Check electrode gap before screwing in a new spark plug .

Remove spark plug using special tool Spark Plug Wrench 3122 B . → Loosening spark plugs using spark plug wrench

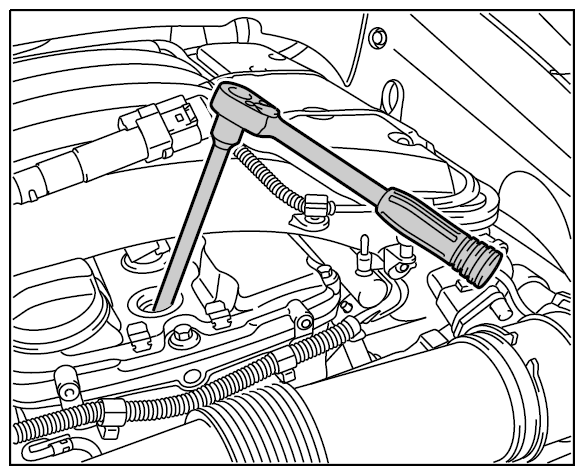

Fig 1: Loosening Spark Plugs Using Spark Plug Wrench
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check electrode gap. → Nominal value: 0.9 mm → Maximum value: 1.1 mm → Electrode gap of spark plug in V6 engine

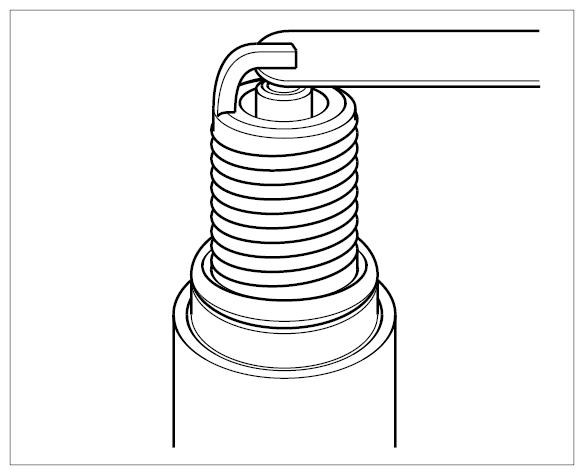

Fig 2: Checking Electrode Gap Of Spark Plug In V6 Engine
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
