Removing Hall Sender
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
- Mark hall sender cable plugs according to position of intake and outlet camshafts .
- Have a mirror and lamp to hand in case the installation position is difficult to see .
- Pull off cable plugs on camshaft hall senders. Use special tool Assembly Tool T10118 or an angled piece of wire for this purpose.

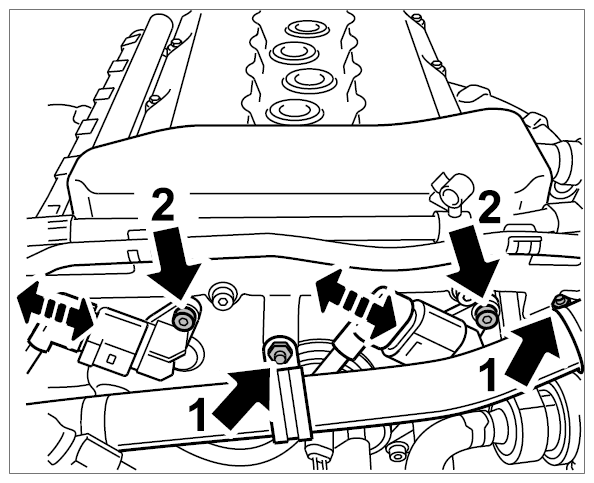

- Unscrew the fastening screws on the hall senders -2- and carefully remove the hall senders.
