Removing Hall Sender

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release and unplug connector for camshaft hall sender. → Camshaft hall sender connector

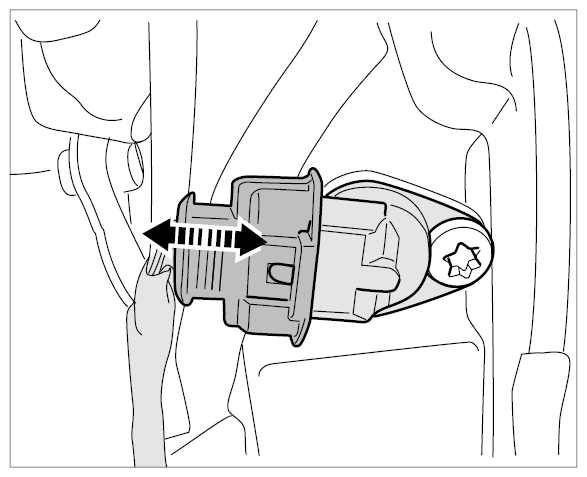

    Fig 1: Removing Camshaft Hall Sender Connector
    G09934222Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove fastening screw -3-  on hall sender and pull hall sender -4-  out carefully.

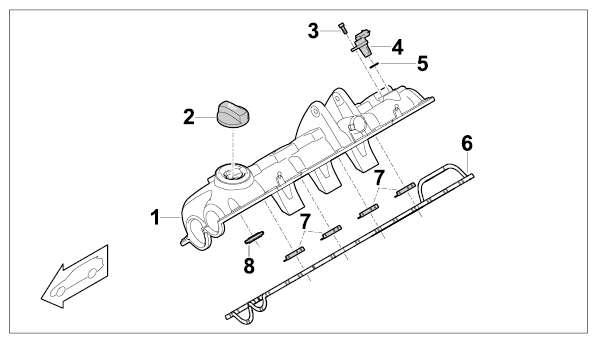

    Fig 2: Identifying Hall Sender (Cylinders 1 To 4)
    G09934223Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Valve Cover For Cylinders 1 To 4 (Align Over Bar Ignition Modules)
    2. Oil Cap
    3. Aluminum Screw  , M6 x 20; hall sender (phase sensor); always use new aluminum screws
    4. Hall Sender
    5. Sealing Ring
    6. Valve Cover Seal
    7. Valve Cover Seal, Inner
    8. Seal For Hydraulic Valve For Camshaft Control

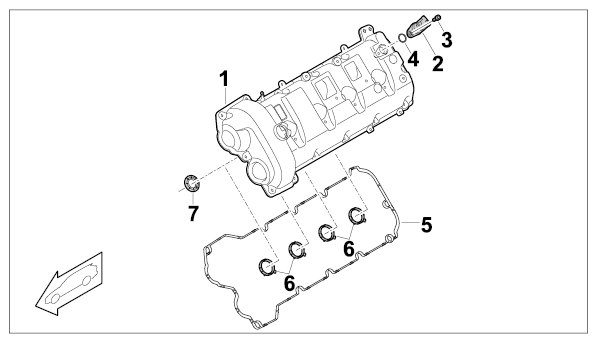

    Fig 3: Identifying Hall Sender (Cylinders 5 To 8)
    G09934224Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Valve Cover For Cylinders 5 To 8 (Align Over Bar Ignition Modules)
    2. Hall Sender
    3. Aluminum Screw  , M6 x 20; hall sender (phase sensor); always use new aluminum screws
    4. Sealing Ring
    5. Valve Cover Seal
    6. Valve Cover Seal, Inner
    7. Seal For Hydraulic Valve For Camshaft Control
