Preliminary Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove design cover on cylinder head cover for the affected cylinder bank. → 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER)

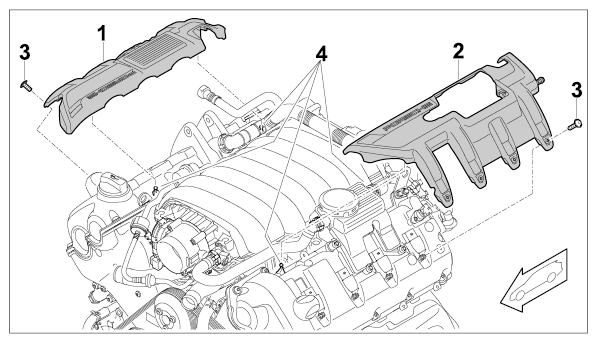

    Fig 1: Exploded View Of Engine Design Cover
    G09934221Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Design Cover For Cylinder Bank 1 To 4
    2. Design Cover For Cylinder Bank 5 To 8
    3. Screw For Securing Design Cover To Bar Ignition Module
    4. Mounting Points (Tapered Rubber Elements)
