Installing Hall Sender

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The tightening specifications for the basic engine are stored centrally (→ WM 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES, ASSEMBLY OVERVIEWS (CAYENNE S) ).

Tightening Torques and assembly instructions for other assemblies (e.g. chassis, electrics, transmission or body) or for peripheral engine equipment can be found in the corresponding documents.

Replace sealing ring.
Carefully fit the hall sender -4- . Fit fastening screw -3- on the hall sender.

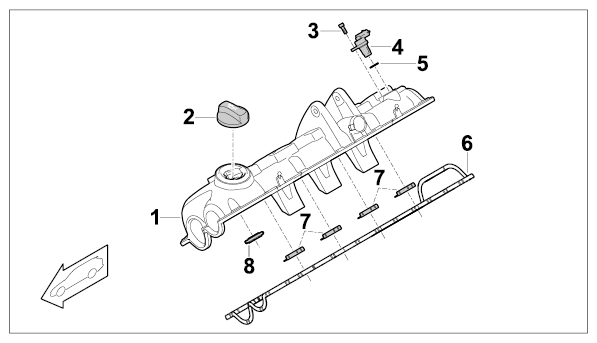

Fig 1: Identifying Hall Sender (Cylinders 1 To 4)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Valve Cover For Cylinders 1 To 4 (Align Over Bar Ignition Modules)
2. Oil Cap
3. Aluminum Screw , M6 x 20; Hall Sender (Phase Sensor); Always Use New Aluminum Screws
4. Hall Sender
5. Sealing Ring
6. Valve Cover Seal
7. Valve Cover Seal, Inner
8. Seal For Hydraulic Valve For Camshaft Control

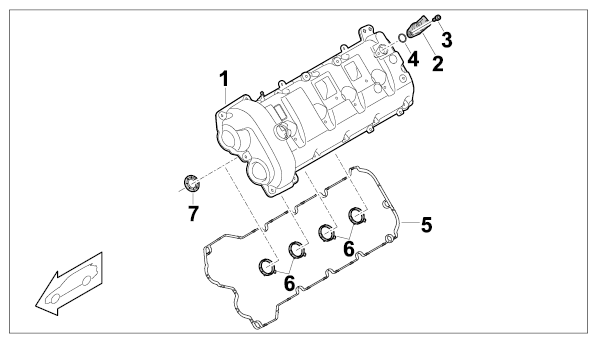

Fig 2: Identifying Hall Sender (Cylinders 5 To 8)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Valve Cover For Cylinders 5 To 8 (Align Over Bar Ignition Modules)
2. Hall sender
3. Aluminum Screw , M6 x 20; hall Sender (Phase Sensor); Always Use New Aluminum Screws
4. Sealing Ring
5. Valve Cover Seal
6. Valve Cover Seal, Inner
7. Seal For Hydraulic Valve For Camshaft Control
Slide on cable plug. The connector must engage audibly.

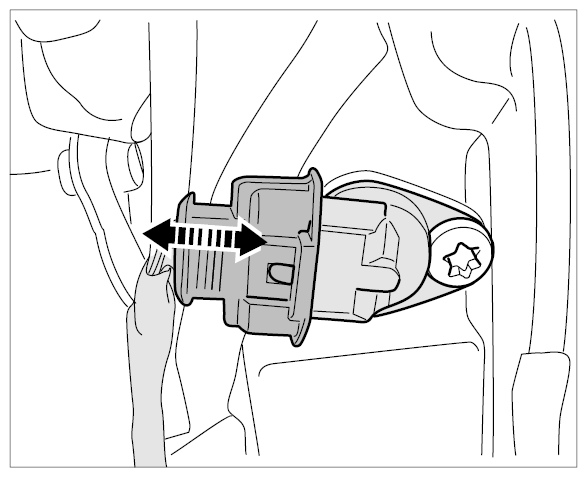

Fig 3: Identifying Camshaft Hall Sender Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
