Removing Hall Sender

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The pictures shown in this document may differ from the original .

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is practically identical.

Loosen screws -3- on the secondary-air line -6- . → 266919 REMOVING AND INSTALLING SECONDARY AIR VALVE
1. 1.1. Do not unscrew screws -3- fully.
Unscrew screws -4- and remove holder -5R- .
Unscrew screws -7- and remove holder -5L- .

Fig 1: Identifying Heat Shield For Camshaft Hall Sender
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release and disconnect electric plug connection -1- .
Unscrew screws -2- and remove hall sender.

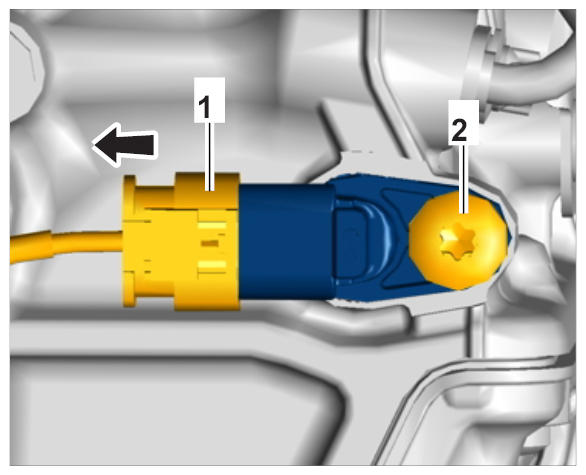

Fig 2: Removing Camshaft Hall Sender
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
