Preliminary Work For Intake Camshaft Hall Senders

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

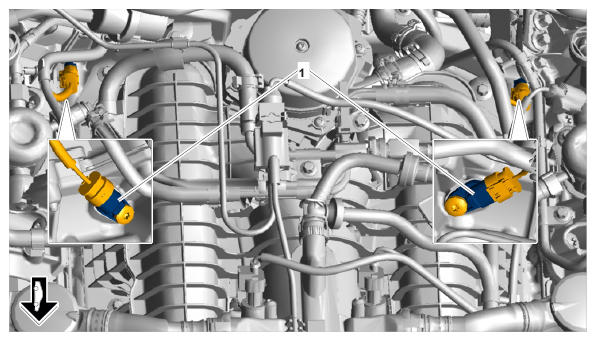

Fig 1: Identifying Installation Position Of Intake Camshaft Hall Senders
G09934215Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove intake-air distributor. → 244619 REMOVING AND INSTALLING INTAKE-AIR DISTRIBUTOR
