Technical Values: Ignition
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

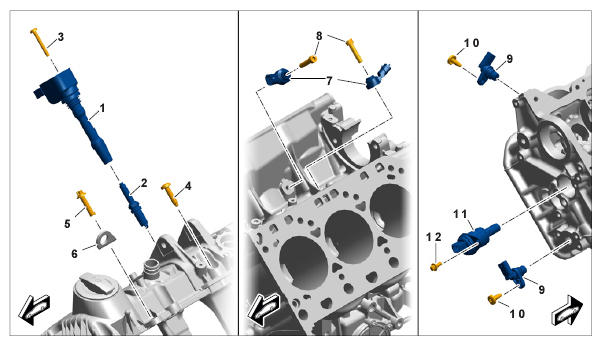

- Ignition Coil, Sprinkle With Talcum Powder Before Fitting
- Spark plugs → Tightening Torque: 25 Nm (19 Ft. Lb.) +.5 Nm (+1 Ft. Lb.) → Tightening Torque: 31.5 Nm (23.5 Ft. Lb.) +1.5 Nm (+1 Ft. Lb.)
- Aluminum Screw, M6 x 45 Replace → Initial Tightening: 4 Nm (3 ft. lb.) → Final Tightening: +90°
- For Tightening Torque for screw(s), see INSTALLING CYLINDER HEAD COVER
- For Tightening Torque for screw(s), see INSTALLING CYLINDER HEAD COVER
- Transport Eyebolt
- Knock Sensor
- Screw M8 x 35 → Tightening Torque: 23 Nm (17 ft. lb.)
- Phase Sensor
- Aluminum Screw, M6x16/Replace → Initial Tightening: 4 Nm (3 Ft. Lb.) → Final Tightening: +60°
- Hydraulic Valve For Variable Valve Lift Control
- Screw, BM5 x 12 → Tightening Torque: 6 Nm (4.5 ft. lb.)
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Cover on fuse box in the plenum panel | Internal Torx screw, | Tightening Torque | 3.5 Nm (2.5 ft. lb.) |
