Removing Ignition Coils

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is practically identical.

Disconnect cable guide on the cylinder head cover.
1. 1.1. Unscrew screws -1- and -2- and loosen cable guide.
  Cylinders 4-6: Loosen screw -2- using tool Insert For Torque Wrench 9792 and unscrew it.
2. 1.2.

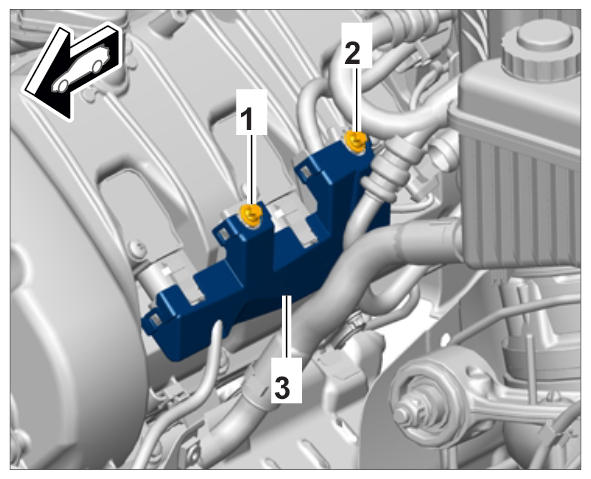

  Fig 1: Identifying Cable Guide Mounting
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen ignition coils.
1. 2.1. Release electric connectors -arrows- and set cable guide aside.
2. 2.2. Loosen screws -1- on the ignition coils.

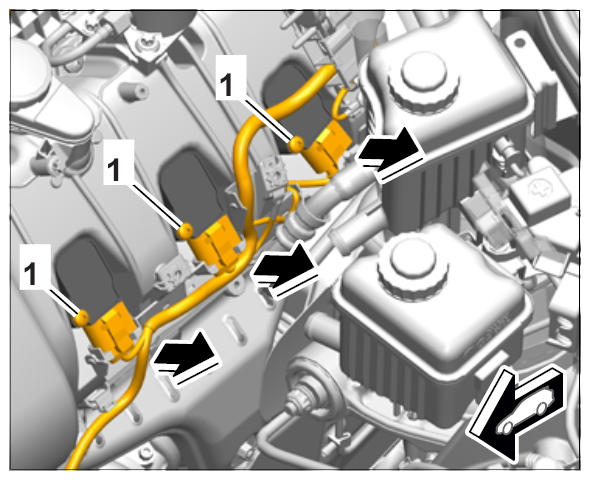

  Fig 2: Removing Ignition Coil Connectors
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove ignition coils. → see Fig 3

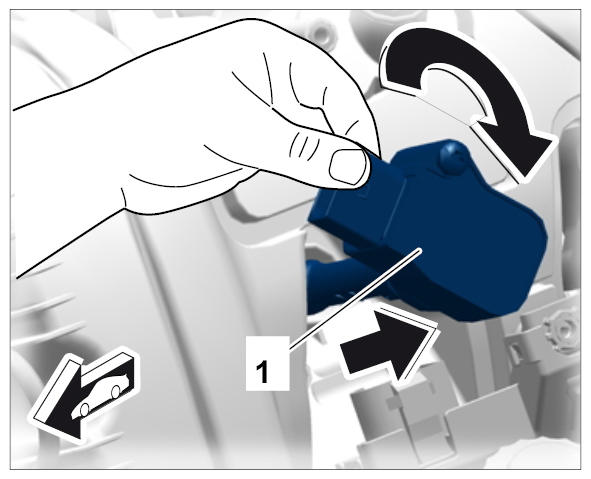

Fig 3: Removing Ignition Coil
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

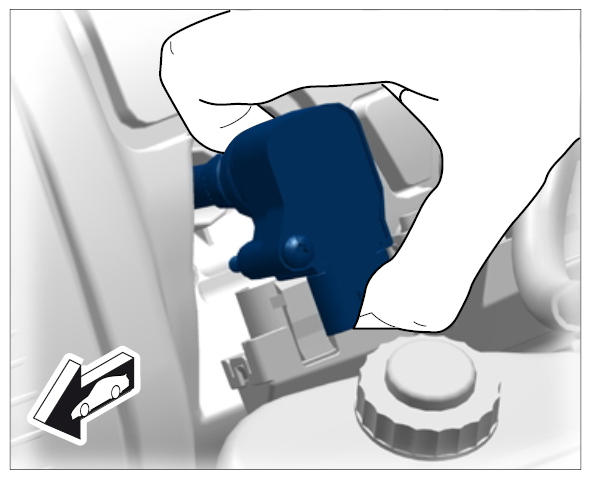

In difficult-to-reach areas, the ignition coil -1- can also be turned.

Fig 4: Removing Ignition Coil
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
