Component Overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

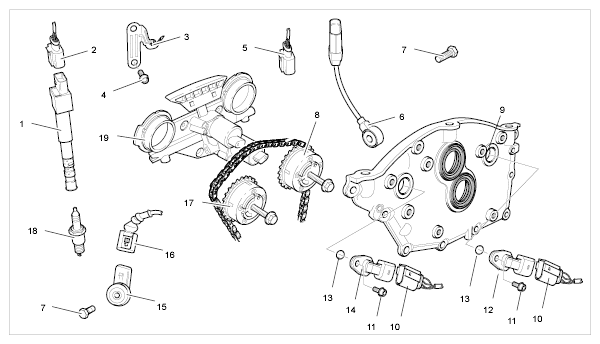

Fig 1: Overview Of Ignition System
G09934211Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. -1-  - Bar Ignition Module
  2. -2-  - Cable Plug
  3. -3-  - Support
  4. -4-  - Screw → Tightening Torque: 20 Nm (15 ft. lb.)
  5. -5-  - Cable Plug
  6. -6-  - Knock Sensor
  7. -7-  - Screw → Tightening Torque: 20 Nm (15 ft. lb.)
  8. -8-  - Exhaust Camshaft Adjuster 32A
  9. -9-  - Cover Section
  10. -10-  - Cable Plug
  11. -11-  - Screw → Tightening Torque: 10 Nm (7.5 ft. lb.)
  12. -12-  - Hall Sender G163, Exhaust Camshaft
  13. -13-  - Sealing Ring; Replace
  14. -14-  - Hall Sender G40, Intake Camshaft
  15. -15-  - Knock Sensor
  16. -16-  - Cable Plug
  17. -17-  - Intake Camshaft Adjuster 24E
  18. -18-  - Spark Plug → Tightening Torque: 20 Nm (15 Ft. Lb.)
  19. -19-  - Timing Chain Housing
