Removing Ignition Starter Switch

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

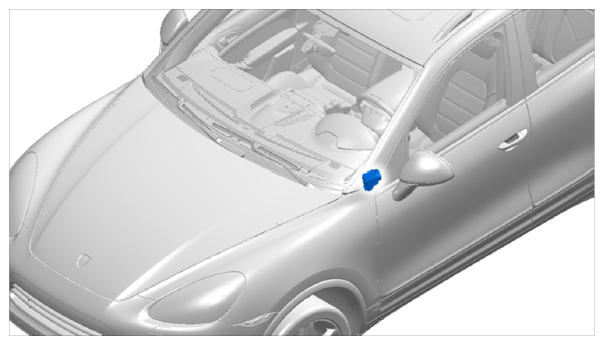

Fig 1: Identifying Installation Position Of Ignition Starter Switch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

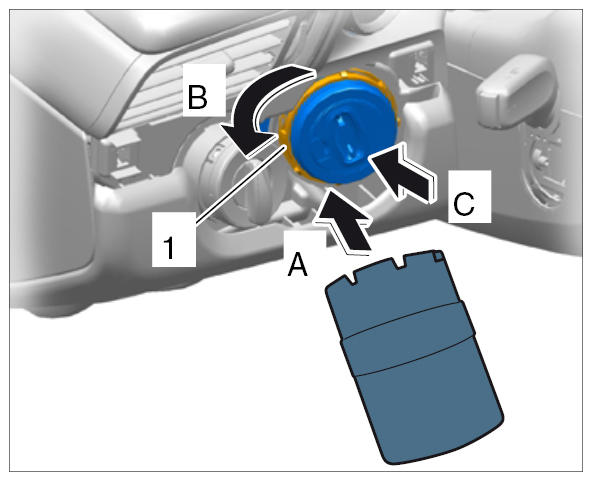

Fit special tool Key 9800 on the union nut -A- .
Screw off union nut -1- using special tool Key 9800 and remove if from the ignition starter switch -B- .

Fig 2: Removing Union Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press ignition starter switch inwards -C- and remove it in a downward direction.

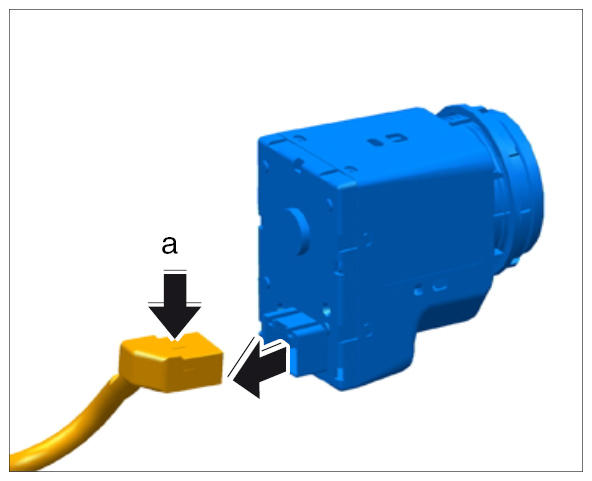

Release electric plug connection -a- and disconnect it -arrow- .

Fig 3: Disconnecting Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
