Removing Actuator
WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

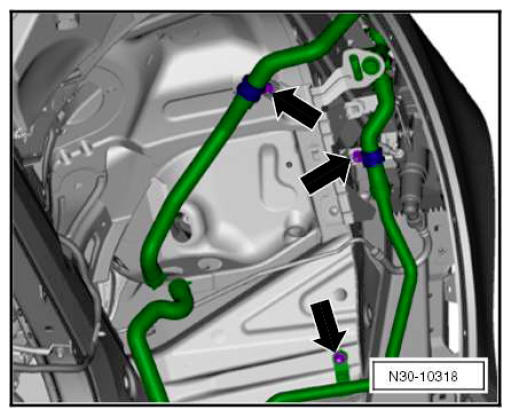

- Screw off coolant hose brackets -arrow- and set the coolant hose aside.

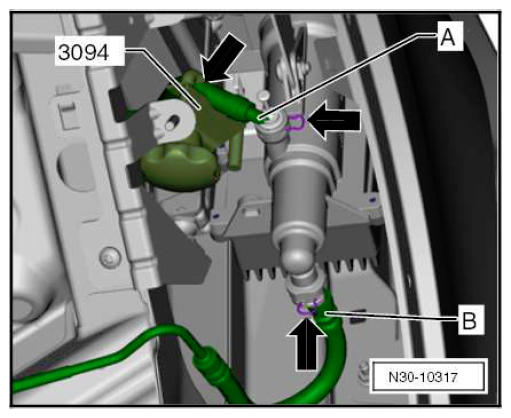

- Clamp off return hose using a hose clamp 3094 -arrow-
.NOTE: Aggressive fluids
- Risk of damage to components and surfaces
→ Do not spill fluids.
→ In the event of contact, wash the component or surface with water.
→ Replace components that are already damaged.
NOTE: Incorrect handling of hydraulic system- Malfunction in hydraulic system
- Risk of damage to hydraulic system
→ Do not disconnect plug-in couplings while opening or closing the rear lid.
→ Secure the lid mechanically to prevent it from closing before disconnecting plug-in couplings.
→ Do not short-circuit plug-in couplings.
→ Do not operate the system while plug-in couplings are disconnected.
→ Do not press actuating cylinder in or pull it out manually when the hydraulic unit is removed.
→ Protect hydraulic system from contamination.
Pry out clips using a screwdriver and pull the lines -A, B- off the actuator. Close off the lines using suitable stoppers.
- Pull plug connection off the actuator.

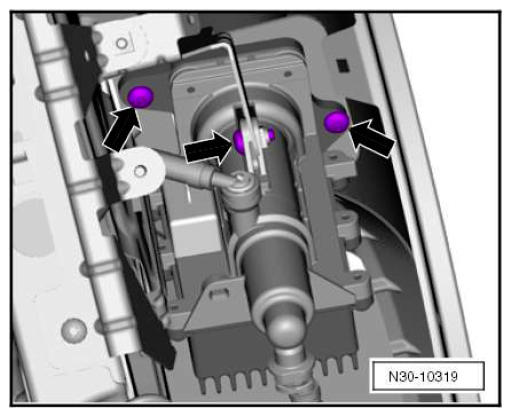

- Unscrew screws -arrows- and remove the actuator.
