Removing Clutch

WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

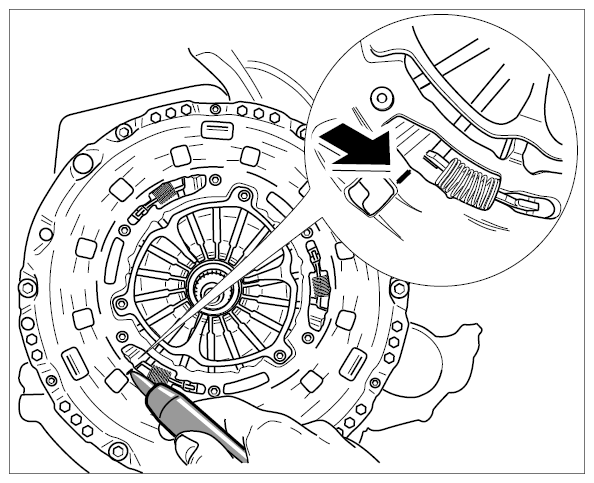

Mark position of clutch adjuster on the clutch pressure plate using a colored pen -arrow- .

Fig 1: Locating Clutch Adjuster Marking
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Loosen and tighten screws on the component according to specifications.

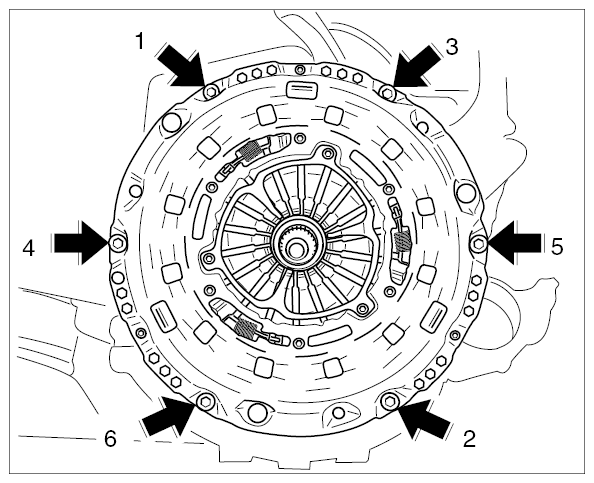

Unscrew the fastening screws on the clutch in the specified sequence -1 to 6- and in several steps. Loosen each screw by half a turn at a time.

Fig 2: Clutch Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the clutch.
