Installing Clutch: Notes

Information

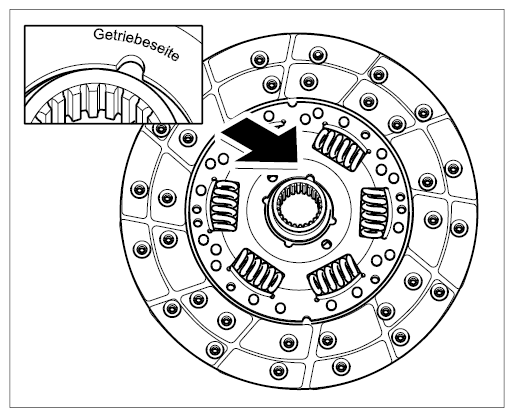

When installing the clutch plate, observe the correct installation position. Please note marking -arrow inset-  on clutch plate.

Fig 1: Locating Clutch Plate Marking

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

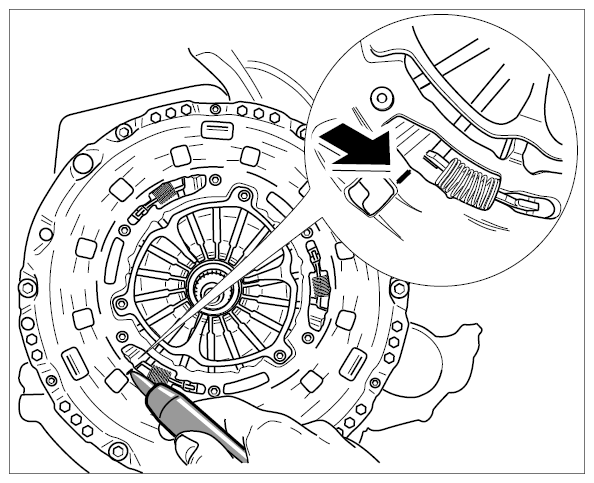

• If the marking -arrow- for the clutch adjuster no longer lines up after reassembly, the clutch must be replaced  .
  Fig 2: Marking Clutch Adjuster

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

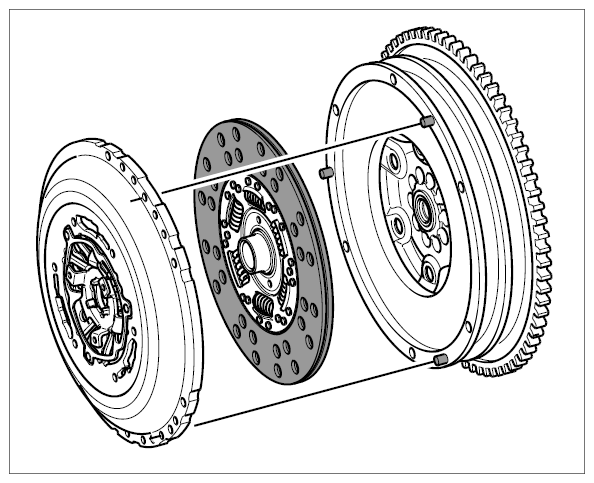

• The clutch pressure plate must be positioned on the three dowel pins → Fitting clutch plate of the double-mass flywheel  .
  Fig 3: Fitting Clutch Plate

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

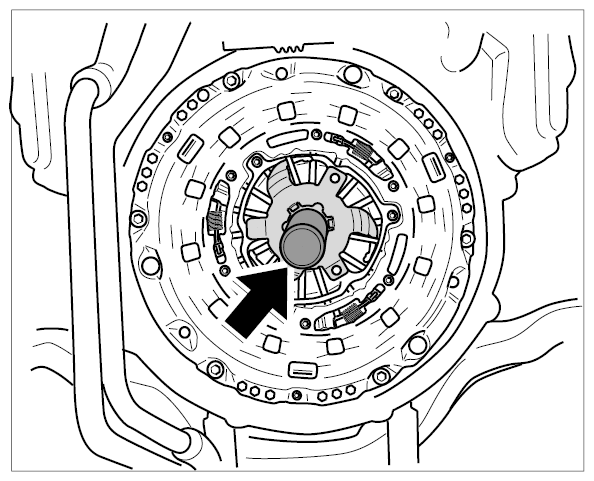

1. Position clutch plate and pressure plate on the engine using special tool centering mandrel 3434 -arrow-  .
   Fig 4: Centering Coupling Plate

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • Replace clutch fastening screws  .

   Information

   • If the marking -arrow- for the clutch adjuster no longer lines up after reassembly, the clutch must be replaced  .
     Fig 5: Marking Clutch Adjuster

     Courtesy of PORSCHE CARS NORTH AMERICA, INC.

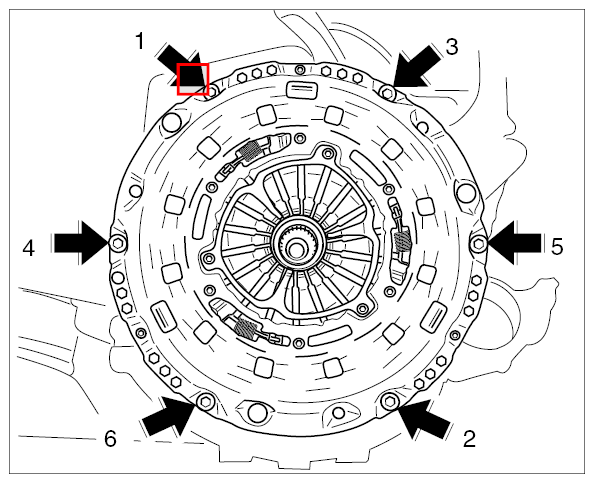

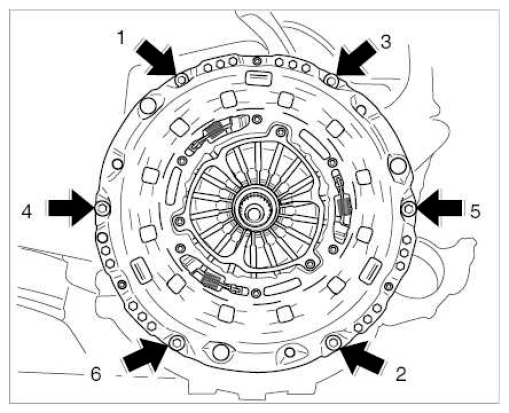

2. Screw in new fastening screws on the clutch in the specified sequence -1 to 6-  and in several steps. Tighten each screw by half a turn at a time.

   Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
   Clutch pressure plate	to double-mass flywheel	Initial tightening	20 Nm (15 ftlb.)
   Clutch tightening sequence
   Clutch pressure plate	to double-mass flywheel	Final tightening	90°
   Clutch tightening sequence

   Fig 6: Locating Clutch Tightening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Remove special tool centering mandrel 3434  .
