Removing Rear Centre Air Vent

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

Insert a plastic spatula at the sides of the air vent -1- and lever the air vent out of the center console -2- (-arrow- ).

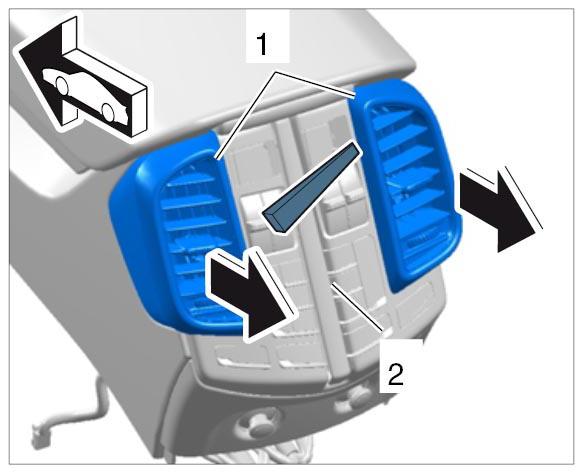

Fig 1: Removing Air Vent
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unplug electric plug connection -2- on the air vent -1- (-arrow- ).

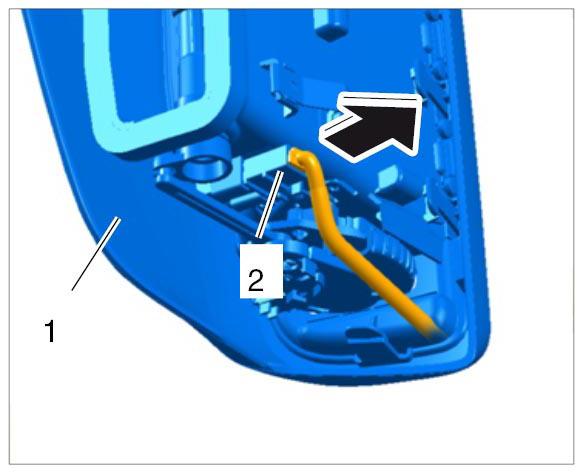

Fig 2: Identifying Electric Plug Connection On Air Vent
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove air vent.
