Removing Centre Air Nozzle

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .

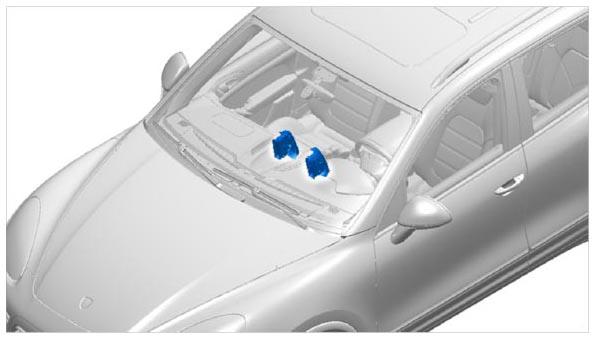

Fig 1: Identifying Centre Air Nozzle Installation Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Release air vent using unlocking tool 9827 .
1. 1.1. Release the metal clip above the second vane from the bottom at the outside using the unlocking tool. Pull the air vent out slightly at the same time.
2. 1.2. Release the metal clip below the second vane from the top at the outside using the unlocking tool. Pull the air vent out slightly at the same time.

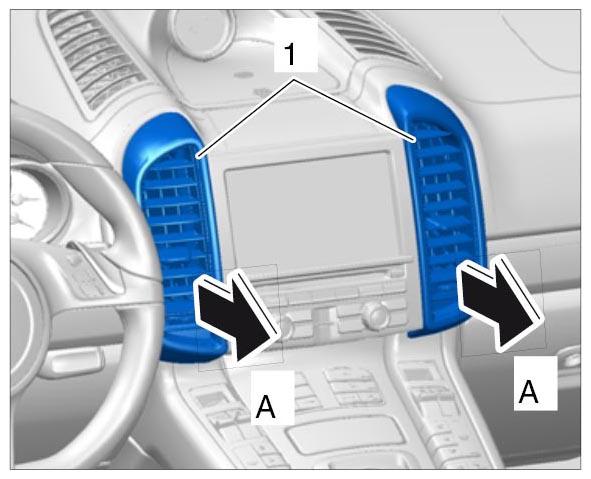

Pull center air vent -1- out completely -A- .

Fig 2: Removing Centre Air Nozzle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

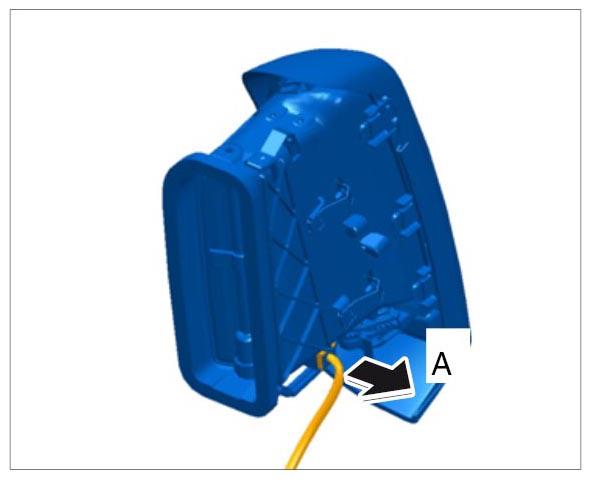

Unplug electrical plug connection -A- .

Fig 3: Disconnecting Plug Connection At Centre Air Nozzle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
