Removing Air Guide

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull bracket for end part -1-  up and remove it -A-  .
  2. Pull end part of air guide -2-  out of the center part -3-  (-B-  ).

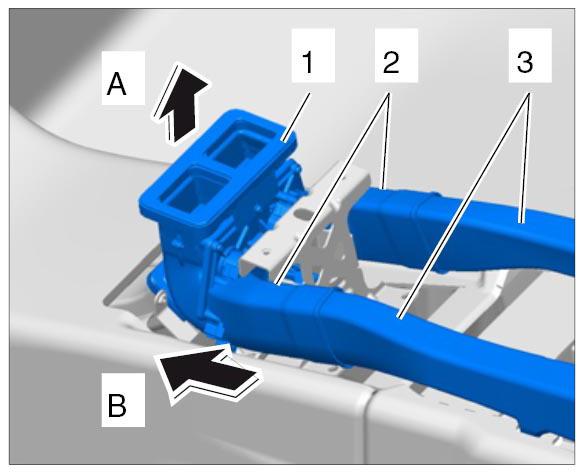

    Fig 1: Removing End Part Of Air Guide
    G09941360Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Pull center part -3-  and front part -4-  of air guide down out of the dashboard -C-  .

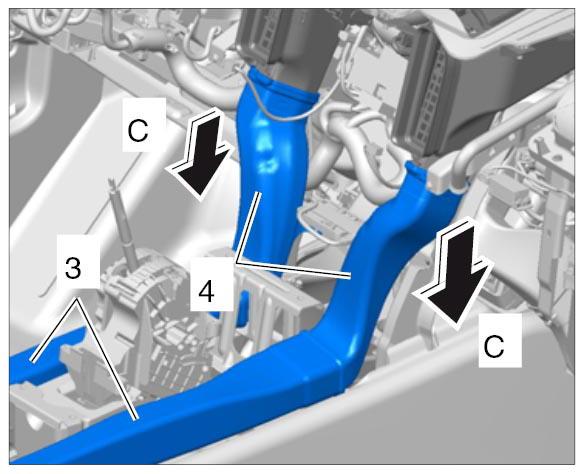

    Fig 2: Removing Centre Part And Front Part Of Air Guide
    G09941361Courtesy of PORSCHE CARS NORTH AMERICA, INC.
