Installation Position Of Air Guide

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

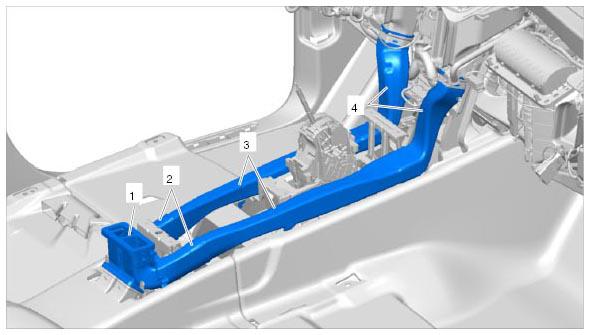

Fig 1: Overview Of Air Guides
G09941359Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Bracket for end part
  2. End part of air guide
  3. Centre part of air guide
  4. Front part of air guide
